6 Best Acoustic Panels to Check Out
What are Acoustic Panels ?
An acoustic panel is a perfect solution to mitigate background noise and reduce the reverberation and echo in any room. Moreover, it guarantees the sound in your room reaches your audience with clarity and impact.
Common sound problems are mainly caused by sound waves bouncing off hard surfaces. So strategically placing acoustic panels on your known reflection points will effectively eliminate the room of echo and other noise problems. There are plenty of acoustic panels to choose in the market and this quick guide will illustrate acoustic panels with best acoustic insulation in TianJie and help steer you in the right direction.
Types of Acoustic Panel

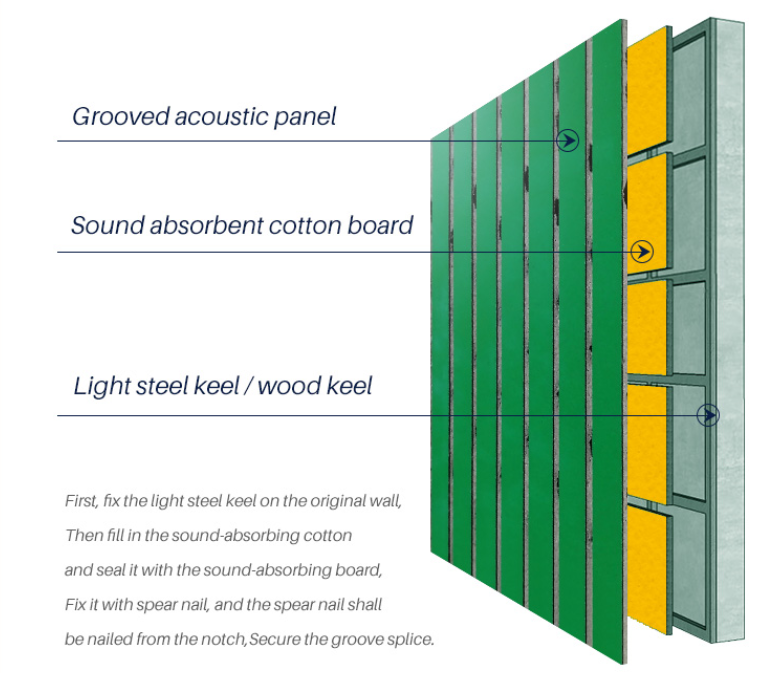

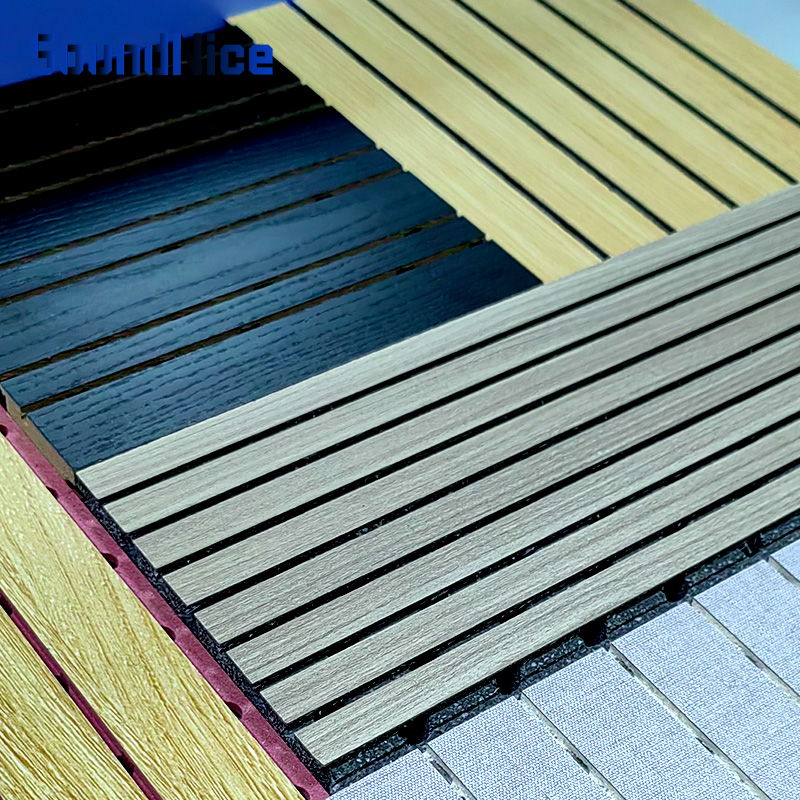

1.Grooved acoustic panels
The grooved mdf acoustic panel range is kind of acoustic panels with variable groove thicknesses as per requirement. It is constructed from MDF,HDF,solid wood,MGO substrate. The grooved wood sound-absorbing board uses the structure of slotting on the surface and perforation on the back to change and control the sound emission to achieve a good sound absorption effect.
Applicable places of wooden grooved acoustic panel: meeting rooms, lecture halls, studios, recording studios, bands, practice rooms, indoor stadiums and other places with high acoustic requirements.
Product parameters of grooved wooden acoustic panels:
- Name: Grooved acoustic panel
- Base material: MDF/HDF/MGO
- Size: 2440*132mm,2440*197mm
- Thickness: 12,15,18mm
- Allowable tolerance: width ±0.1mm length:±2mm

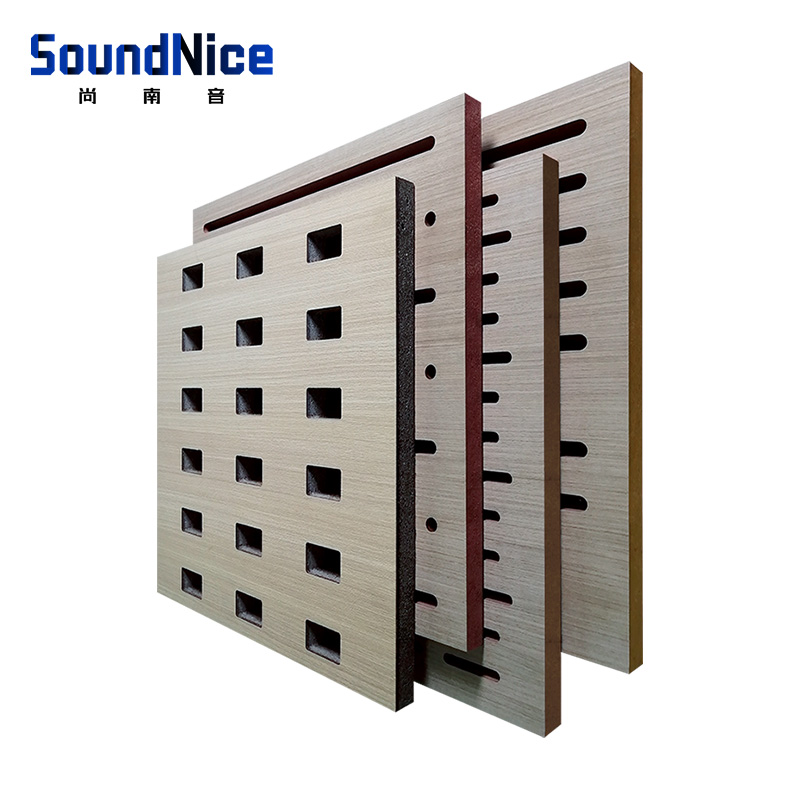

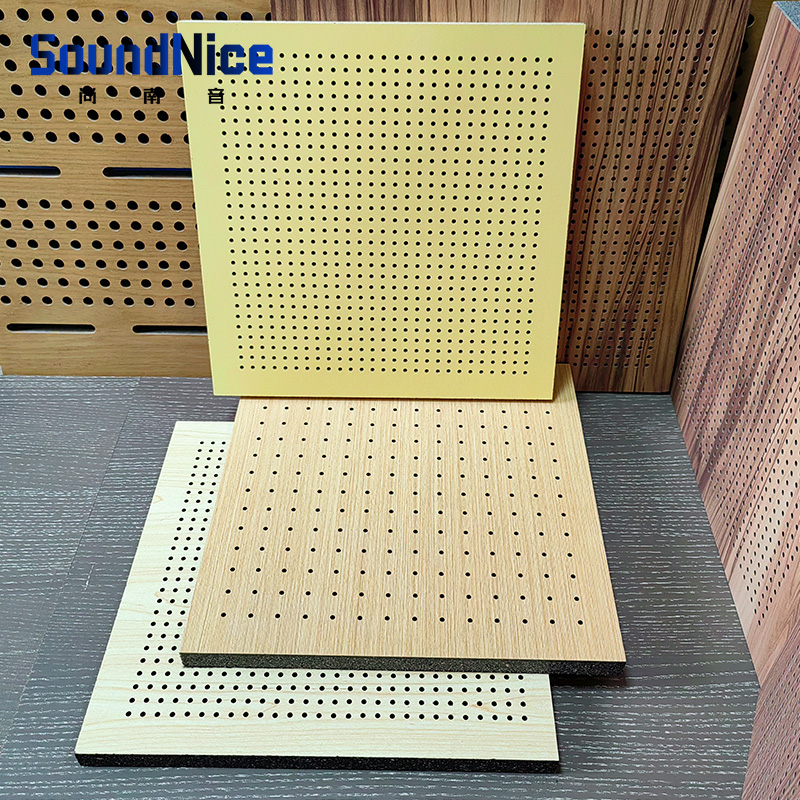

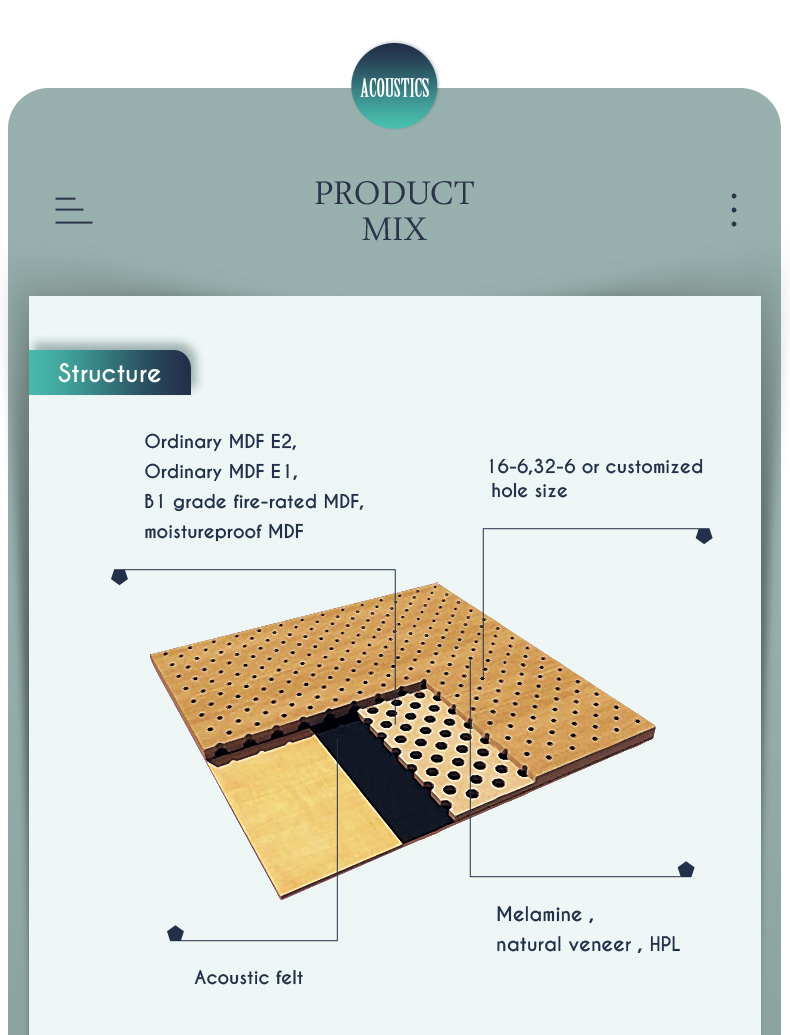

2. Perforated acoustic panel
Perforated acoustic panels
are made of medium density fiberboard, Various perforation patterns meets different places, suitable for wall or ceilings using H shape aluminum keel or other custom installation system and are available in square or double square configurations.
Product parameters of perforated acoustic wood panels:
- Substrate: ordinary, flame-retardant, environmentally friendly, moisture-proof
- Veneer: Melamine, natural veneer, flame-retardant skin, spray paint, metal surface, technical imitation veneer
- Width: 600mm, 1200mm, 1220mm
- Length: 800mm, 1200mm, 2400mm, 2440mm
- Thickness: 12mm, 15mm, 18mm
- Size: Allowable tolerance, width ±1mm, length ±1mm, height ±0.2mm

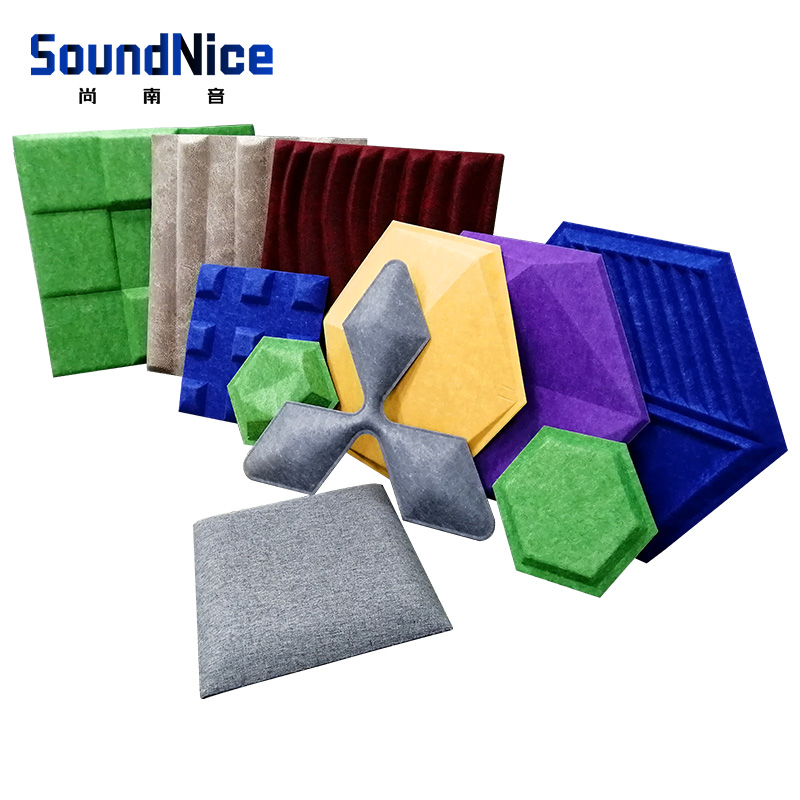

3. POLYESTER ACOUSTIC PANEL
The sound absorption characteristics of 3D PET acoustic panels are similar to those of other porous materials. The sound absorption coefficient increases with the increase of frequency. The high-frequency sound absorption coefficient is very large. The cavity on the back and the spatial sound-absorbing body formed by it can greatly improve the material's performance.
Product parameters
- Material: 100% polyester fiber
- Specification: 1220mm*2420mm*9/12mm
- Density: 160-229kg/㎡
- Color: hundreds of colors (please contact customer service)
- Environmental protection grade: E1
Polyester fabric for acoustic panels:

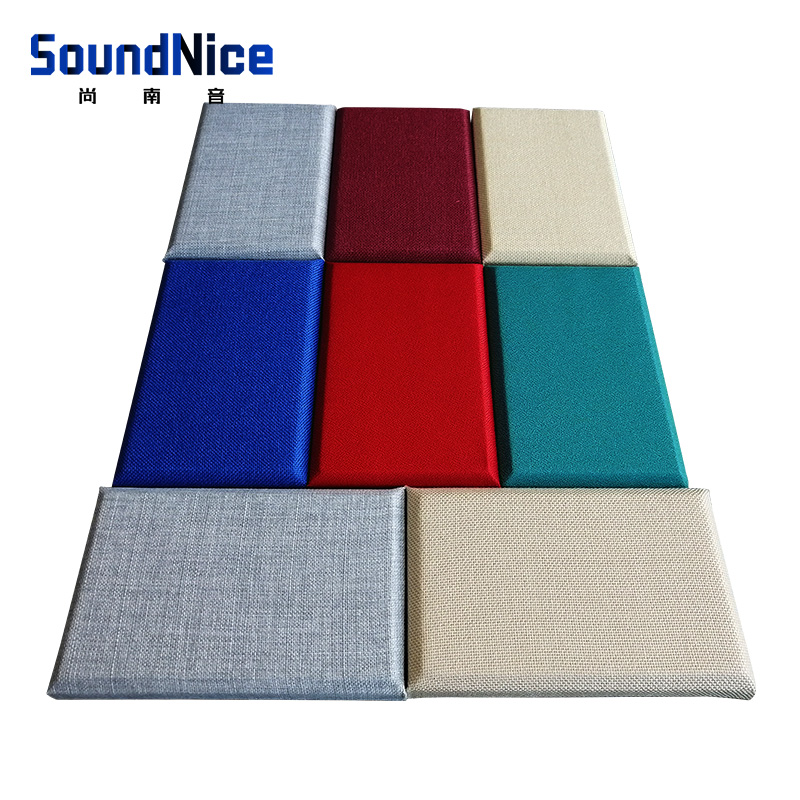

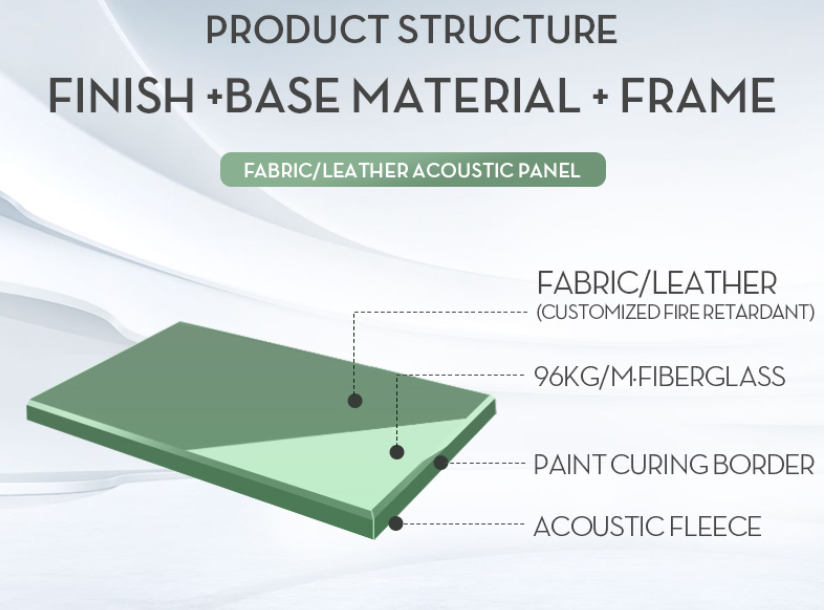

4.Fabric acoustic panel
Fabric acoustic panel is a new type of acoustic building material used in decoration. It is also called Fabric acoustic panel because of its decorative surface including cloth, suede and leather. It has a wide sound absorption spectrum and high sound absorption coefficient.
It has a good sound absorption effect on low, medium and high frequency noise, and at the same time It has the advantages of non-combustibility, anti-collision, decoration, no dust pollution, simple construction and so on.
Product parameters
- Name: Fabric acoustic panel
- Substrate: 96kg/m³ high-density glass wool
- Frame: flame-retardant cured frame, aluminum frame, no frame
- Corners: right angles, rounded corners, cut corners
- Dimensions: width 600/1200mm, length 1200/2400/2440mm,
- thickness 25mm/50mm/100mm
- Finishes: fabric, leather, fluff (multiple colors are available)

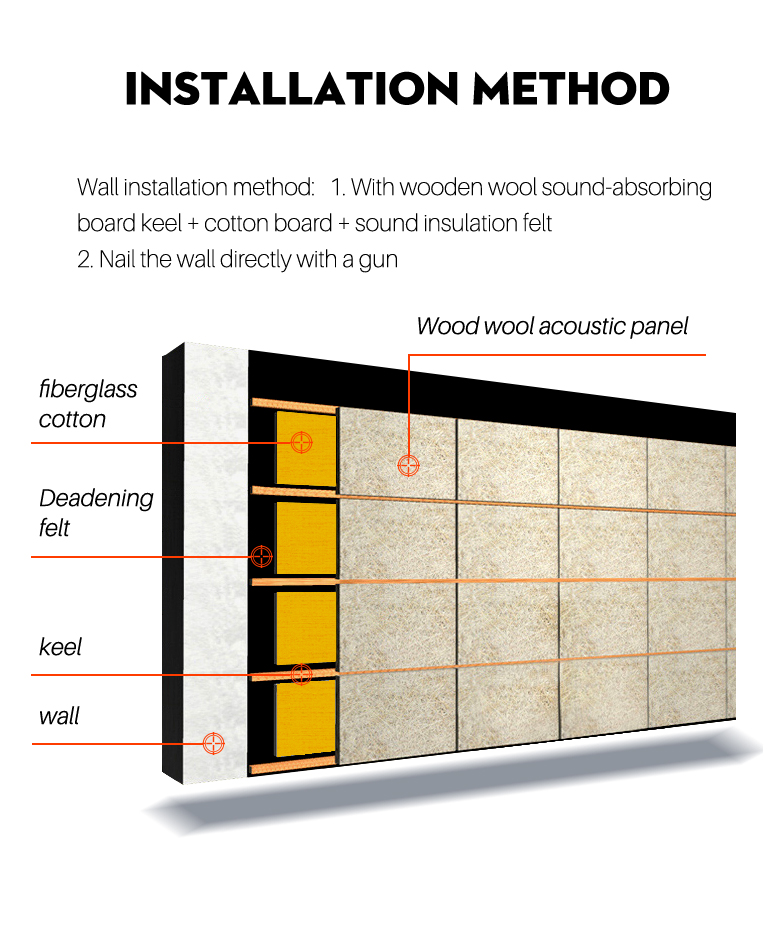

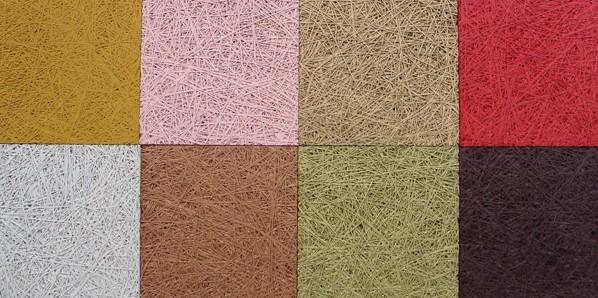

5. Wood wool acoustic panel
Wood wool acoustic panels, combined with inorganic hard cement binders, are manufactured under the conditions of high temperature and high pressure using a continuous operation process.
The wood wool acoustic wall panels has a unique appearance and good sound absorption-the unique surface silky texture gives people a primitive and rough feeling, which satisfies the modern people's idea of returning to nature. The surface can be painted and painted.
Product parameters of wood wool acoustic ceiling panels:
- Product name: wood wool sound-absorbing board
- Substrate: poplar fiber + inorganic cement binder
- Color: primary color, spray paint
- Density: 580kg/m³
- Width: 1220mm
- Length: 2440mm
- Thickness: 15mm, 20mm, 25mm,35mm

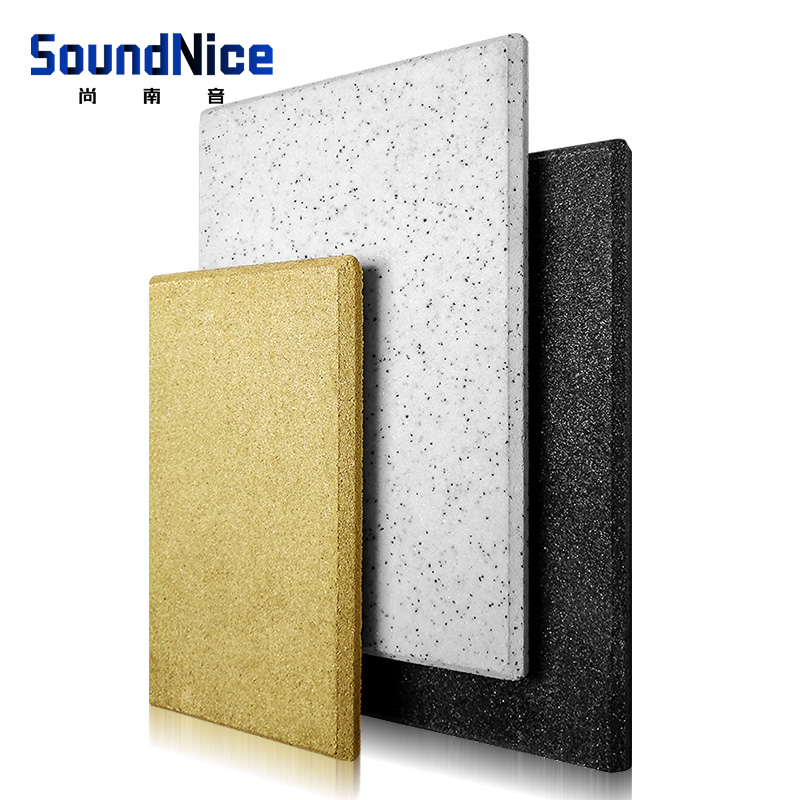

6.Sandrock Acoustic Panel
The base material of the Sandrock Acoustic Panels is made of light sand grains of a specific diameter. Through the polymerization technology, each particle is polymerized together like welding, and the sound-transmitting paint is evenly and thinly covered on the surface of all the particles.
The surface of the sand grains has irregular shapes or aggregated voids, and a large number of irregular and interconnected microscopic pore structures are formed between the particles. Through the pore size, the thickness of the board and the size of the cavity behind the board, the sound absorption frequency characteristics are realized to adjust the indoor acoustic absorption design requirements.
Product parameters:
- Specification: (can also be customized according to design requirements)
- regular size: 600mmx1200x8mm, 10mm, 15mm, 20mm
- 1200mmx2400x8mm, 10mm, 15mm, 20mm
- System weight: about 10kg/㎡
- Sound absorption coefficient: NRC 0.7-0.9dB
- Compressive strength: 24 MPa
- Flexural strength: 5.5 MPa
- Elastic modulus: 12.8GPa
Conclusion
SoundNice Acoustic Materials Factory is engaged in manufacturing of acoustical materials and sound Insulation board and other related kinds, such as grooved acoustic panel, perforated acoustic panel, fabric acoustic panel, polyester acoustic panel, wood wool acoustic panel, sound insulation material,etc. We offer the best fabrics for acoustic panels, so as to meet your design, budgetary and durability requirements.
In the end, purchasing the perfect acoustic panel means taking your time to research your options and to learn as much as you can about the products that are available. In doing so, you will be able to weigh the pros and cons of each and you will be certain to select a acoustic panel that suits your budget as well as your needs. If you need more further information about products,don't hesitate to contact us !
