What Places Can Perforated Acoustic Wooden Panel Use?
Decorzen Perforated Interior Acoustic Timber Panel System
Perforated wooden acoustic panels are selective in the sound absorption spectrum and have good sound absorption performance for low and medium frequencies. For example, filling the cavity behind the sound-absorbing structure with an appropriate amount of sound-absorbing cotton can improve the sound-absorbing effect of perforated acoustic wooden panels in the middle and high frequencies.

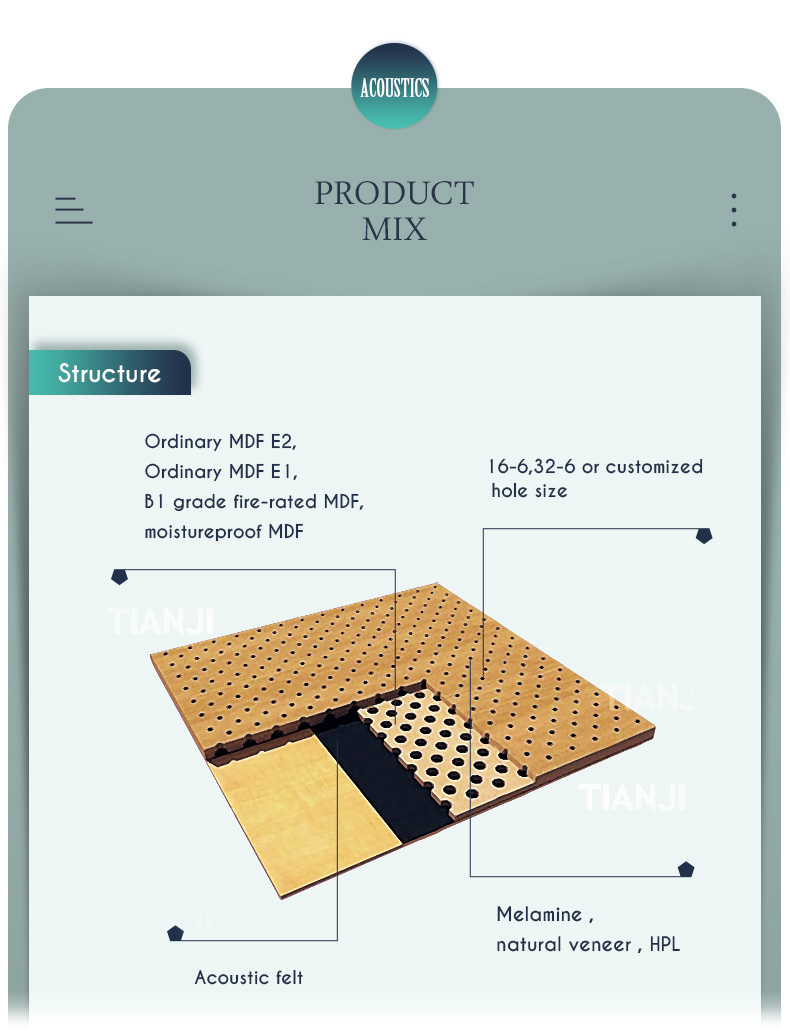

Perforated acoustic wooden panels are available in a variety of finishes, including natural veneer, laminate, melamine, or RAL colors. Tianjie perforated sound absorbing panels are made of MDF in a variety of perforation patterns to meet different localities, are suitable for walls or ceilings using H-shaped aluminum keel or other custom installation systems, and are available in square or double square configurations.
Perforated Acoustic Wooden Panels - Sound Insulation Features
The circular hole structure of timber perforated acoustic panel systems is based on the principles of acoustic scientific calculations. Perforated wooden acoustic panels have excellent noise reduction and sound absorption properties, especially for low and medium-frequency sound absorption.
The perforated sound absorbing panels are to control the sound absorption coefficient of the sound-absorbing panel by calculating the through-hole of the sound-absorbing panel so that the product has a good sound absorption effect in the whole frequency band of high, medium, and low frequencies.
Since different apertures, hole types, and arrangements are used, the sound absorption coefficients are different, so the hole types need to be designed by calculation.
Tianjie can provide perforated acoustic timber panels with various shapes, curves, and other custom features. Customized designs are available, and the aperture diameter and hole spacing can be adjusted according to customer requirements.
| Substrate | Ordinary, flame-retardant, environmentally friendly, moisture-proof |
| Veneer | Melamine, flame-retardant skin, spray paint, metal surface, etc. |
| Width | 600mm, 1200mm, 1220mm |
| Length | 800mm, 1200mm, 2400mm, 2440mm |
| Thickness | 12mm, 15mm, 18mm |
| Size | Allowable tolerance, width ± 1mm, length ± 1mm, height ± 0.2mm |
| Item | Perorated rate |
| Hole through E16/6 | 12.5% |
| Big and small hole V32/3-10 | 4.0% |
| Hole through E32/6 | 4.2% |
| Hole through E8/1.2（front side） | 2.0% |
| Hole through V16/6 | 6.5% |
What Places Are Perforated Sound-Absorbing Panels Suitable For?
The perforated wooden acoustic panels have the characteristics of sound insulation and noise reduction, good physical properties, long service life, and easy construction.
Decorzen perforated interior acoustic timber panel systems are widely used in conference rooms, lecture halls, multi-function halls, gymnasiums, basketball courts, school auditoriums, classrooms, piano rooms, museums, indoor entertainment venues, and other spaces where noise reduction is required, and are new energy-saving and environmentally friendly building acoustic materials with high standards.
You can click to view the project cases served by Tianjie perforated acoustic wooden panels and learn more about the installation effect of the perforated acoustic panels.
