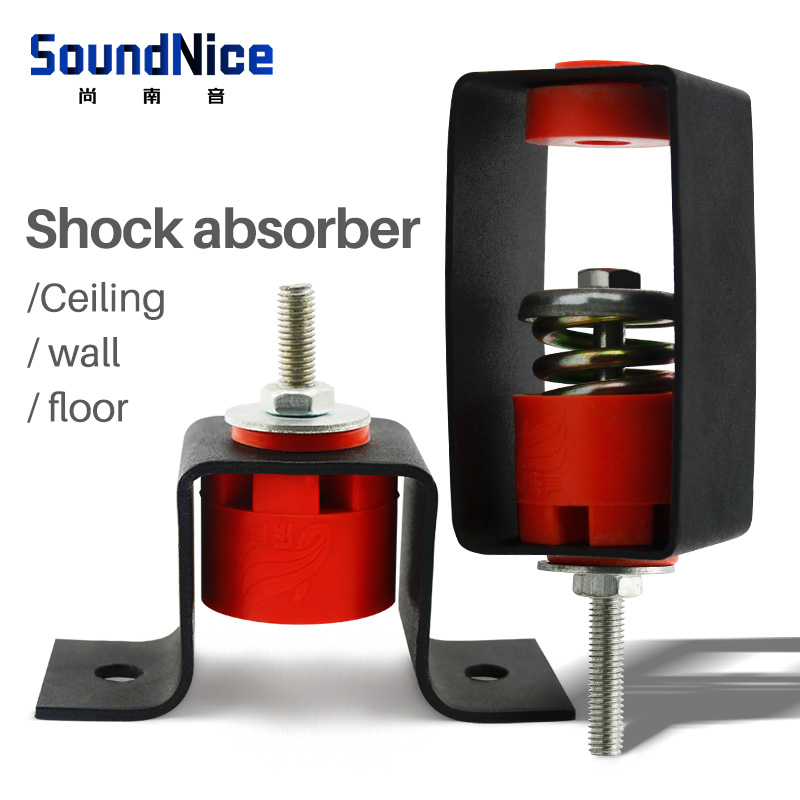

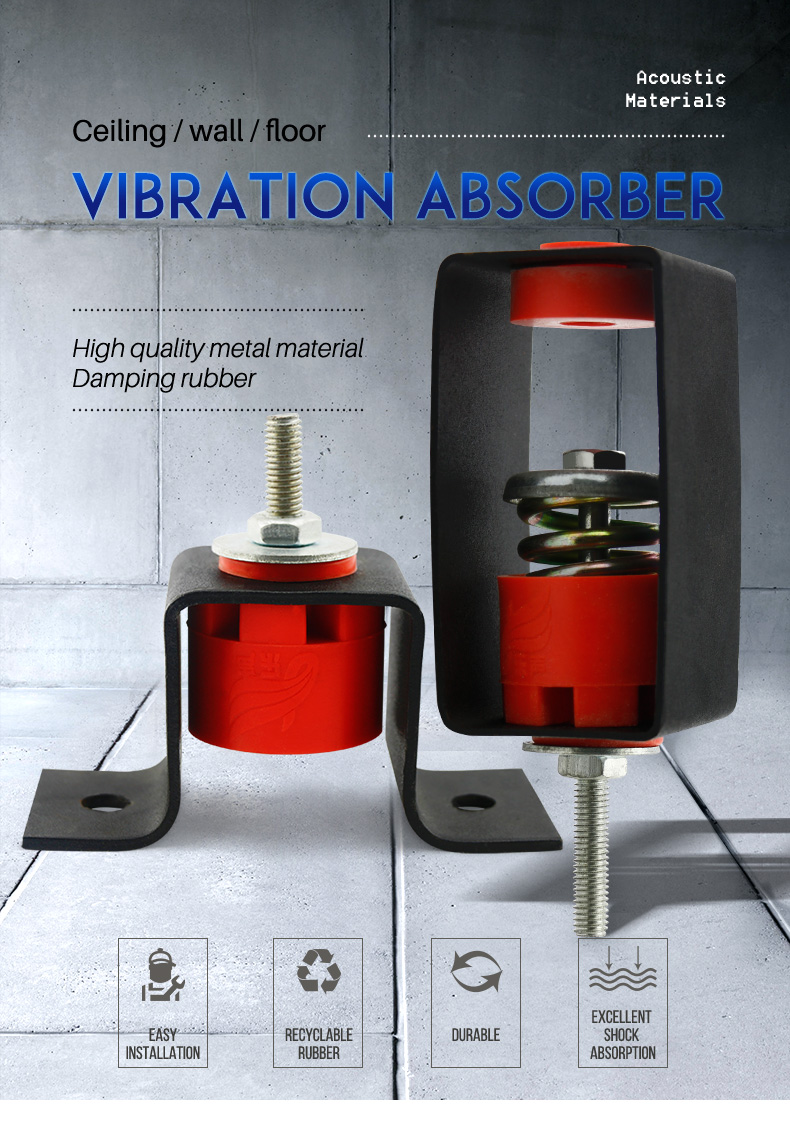

Vibration Absorber

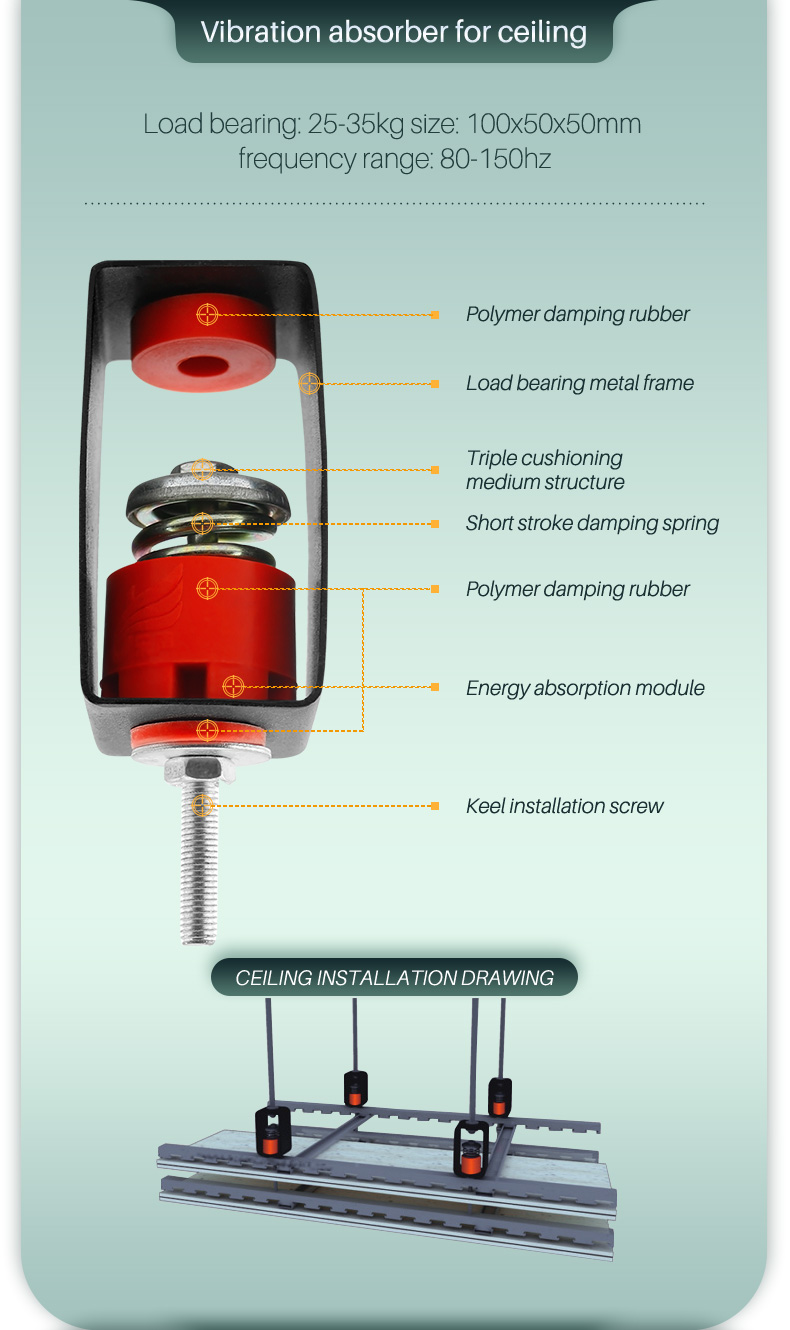

A. Brief introduction of ceiling shock absorber:
The ceiling shock absorber uses the back pressure principle of rubber and steel springs. The vibration isolation and noise reduction components composed of polymer damping rubber and native rubber are generally designed as a suspension type cushioning and vibration damping hanger, which has a significant effect on low frequency vibration and sound insulation.

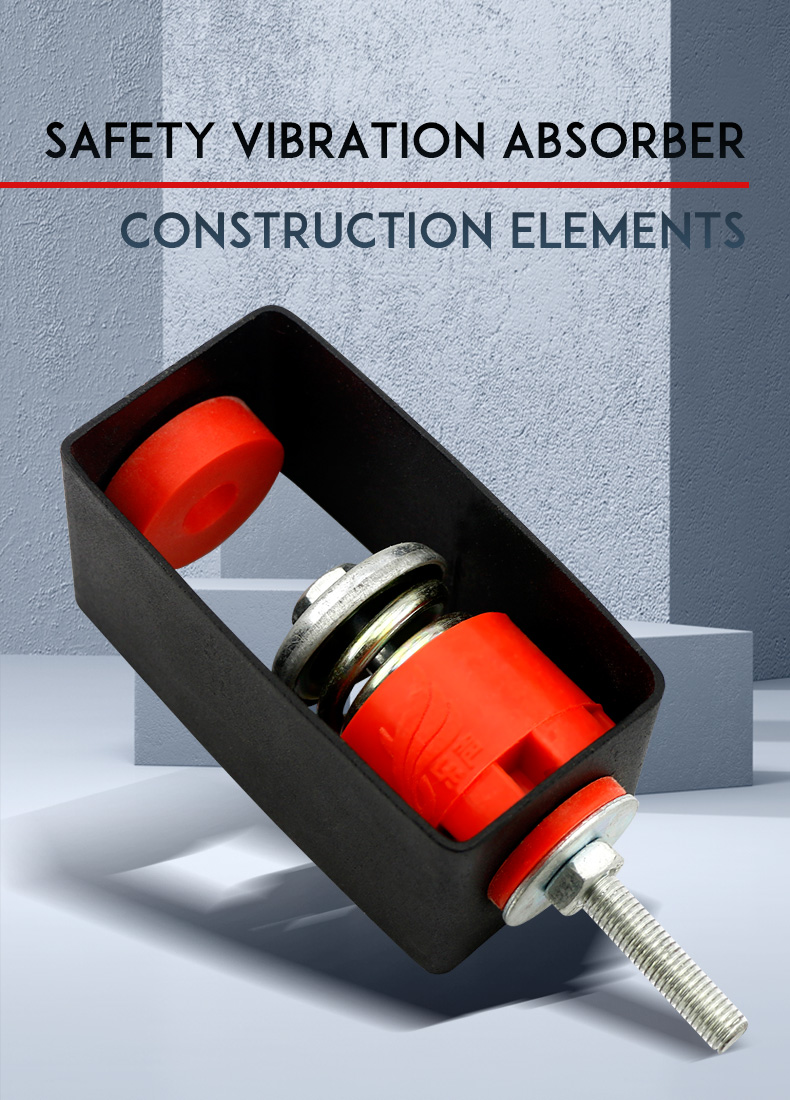

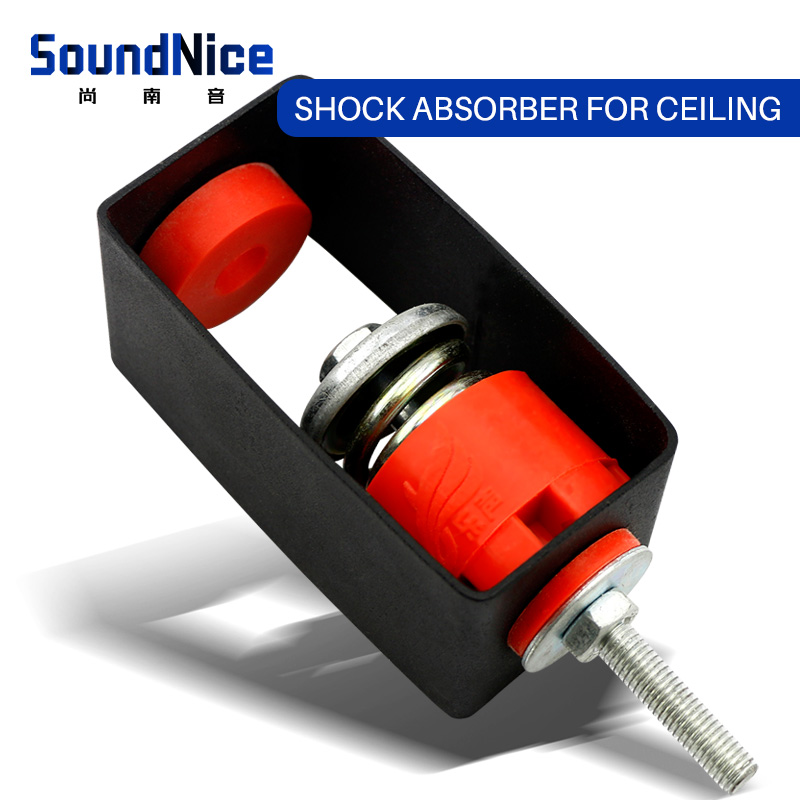

Special shock absorber for ceiling
Specifications：
Width：50mm
Length：100mm
Thickness：50mm
Bearing：25kg-35kg
Frequency range：80Hz-150Hz
B.Brief introduction of wall shock absorber:
The wall shock absorber is composed of a U-shaped frame, a damping rubber layer, and a screw, which is convenient and quick to install. And can play a very good vibration isolation effect in engineering installation.

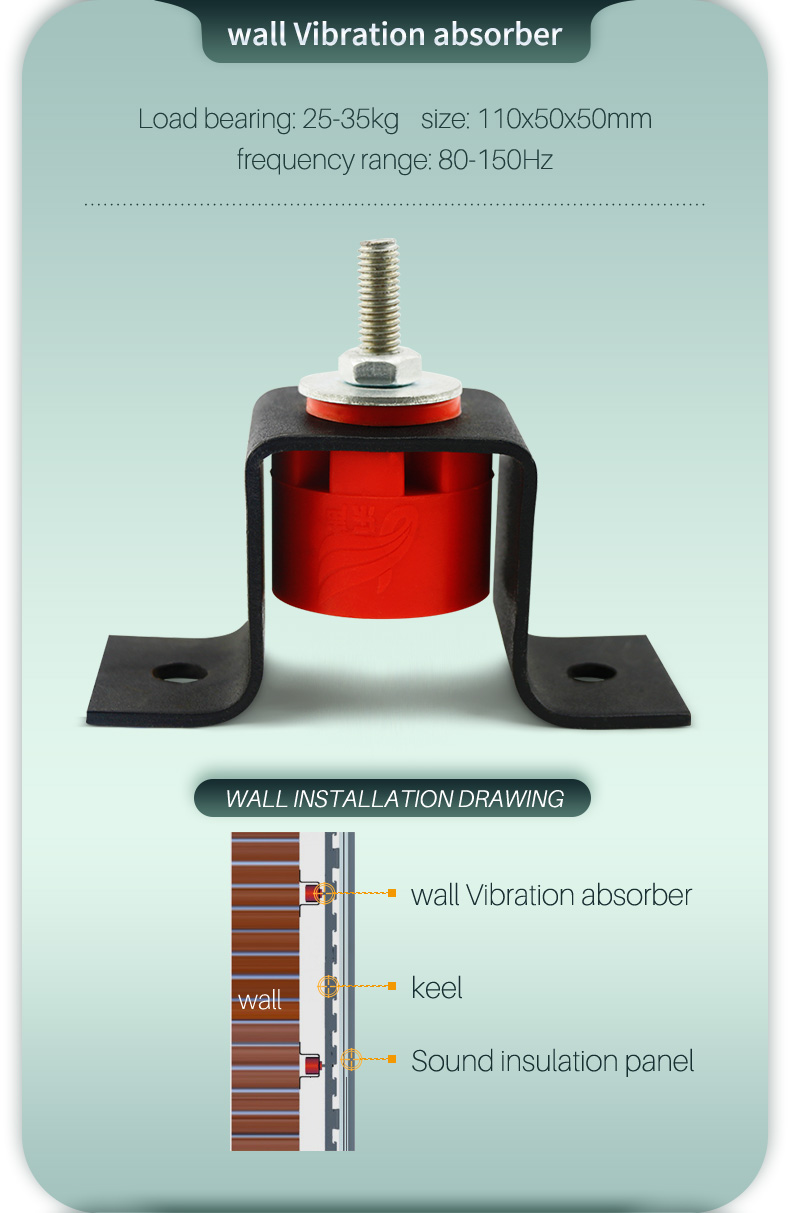

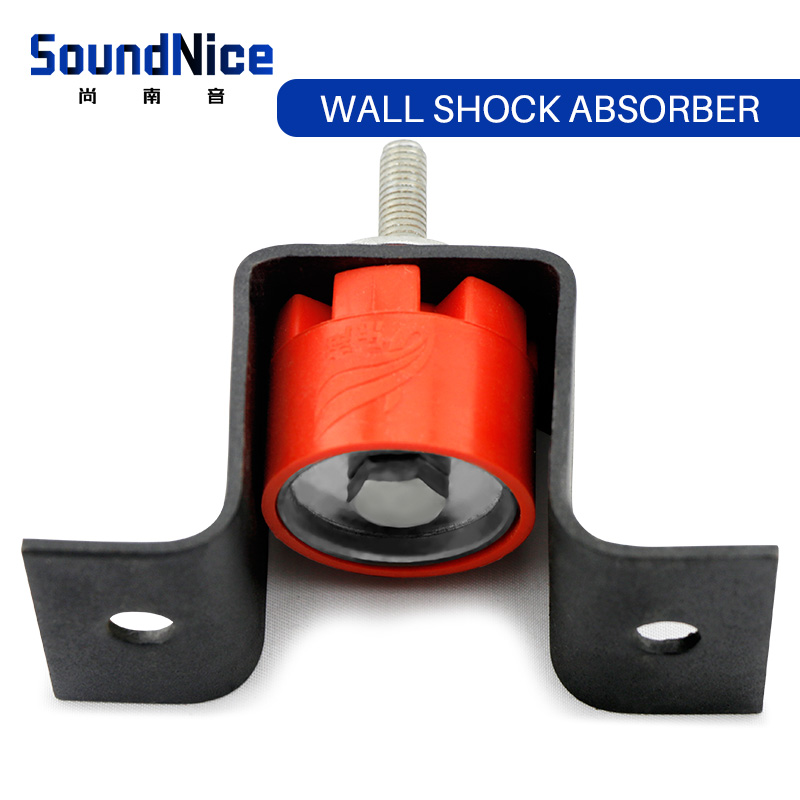

Wall shock absorber
Specifications：
Width：50mm
Length：110mm
Thickness：50mm
Bearingt：25kg-35kg
Frequency range：80Hz-150Hz

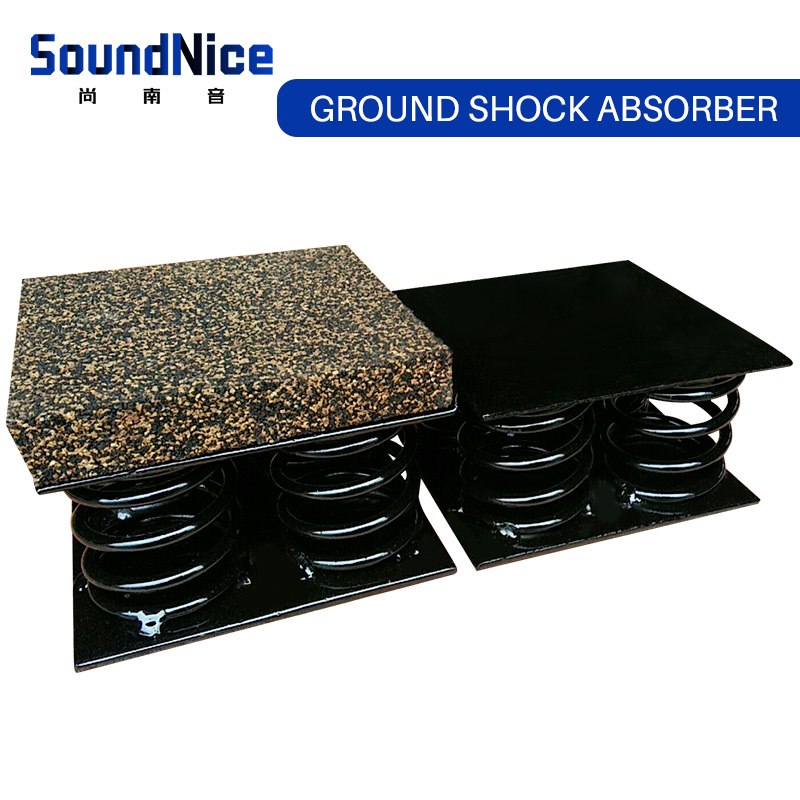

C.Brief introduction of ground shock absorber:
The ground shock absorber uses the shock absorber as the "floating layer" between the floor and the surface to reduce the vibration of the structure layer, thereby improving the harm caused by the low-frequency vibration of the floor.
1) The ground shock absorber is mainly used to suppress the shock when the spring rebounds after absorbing the shock. Although the shock absorbing spring can filter the vibration of the road surface, the spring itself will also have reciprocating motion, and the shock absorber is used to suppress the jumping of this spring.
2) The ground rubber cushion shock absorber adopts the bottom plate to glue the polymer damping damping rubber block to form a dual-material characteristic broadband vibration damping structure. The application of ground shock absorber components "floating ground" can effectively shear the impact of the vibration radiation layer on the original base layer, thereby improving the performance of the floor to isolate low frequency vibration and impact sound.

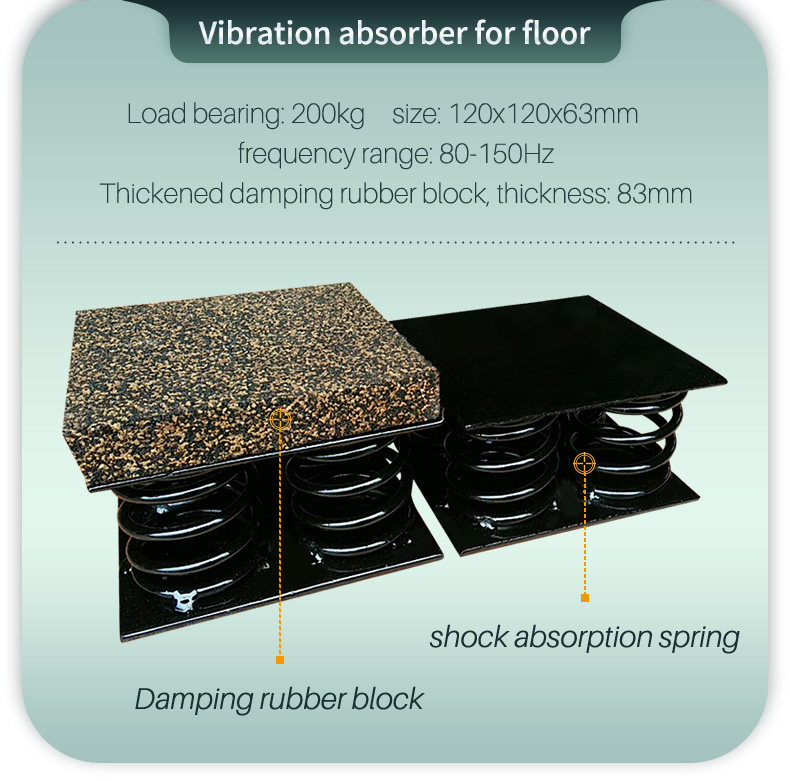

Floor Shock absorber
Specifications：
Width: 120mm
Length: 120mm
Thickness: 63mm
Thickness of damped rubber block：83mm
Bearing: 200kg
Frequency range：80Hz-150Hz

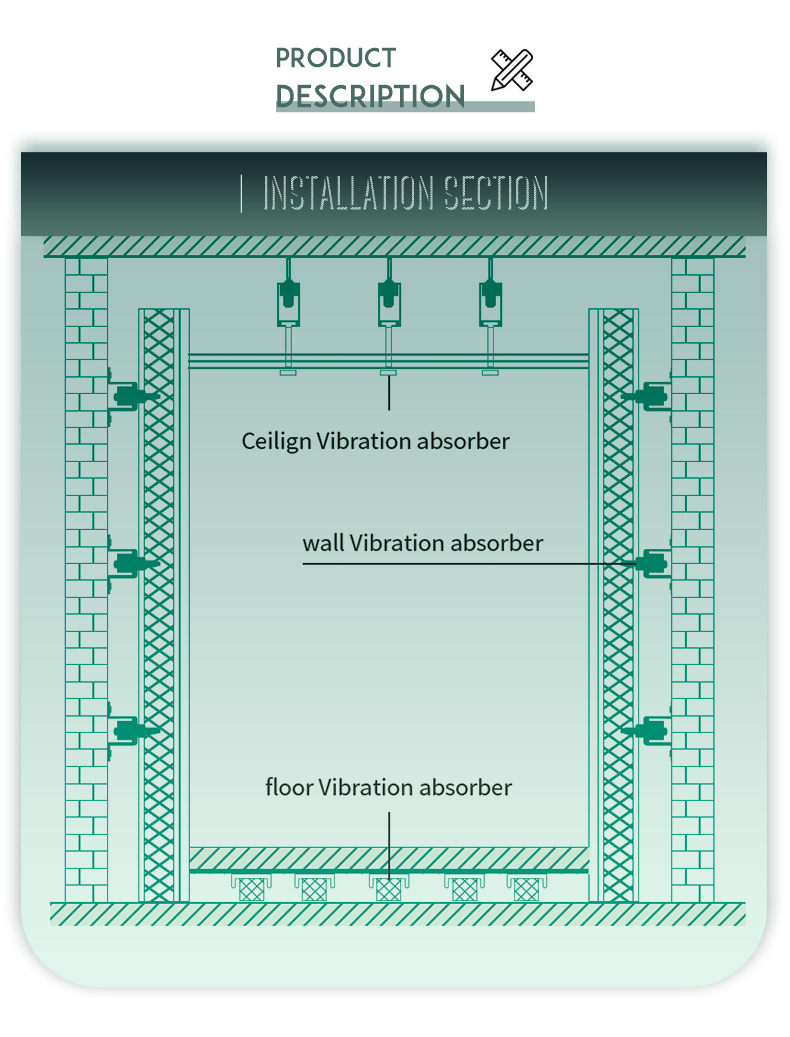

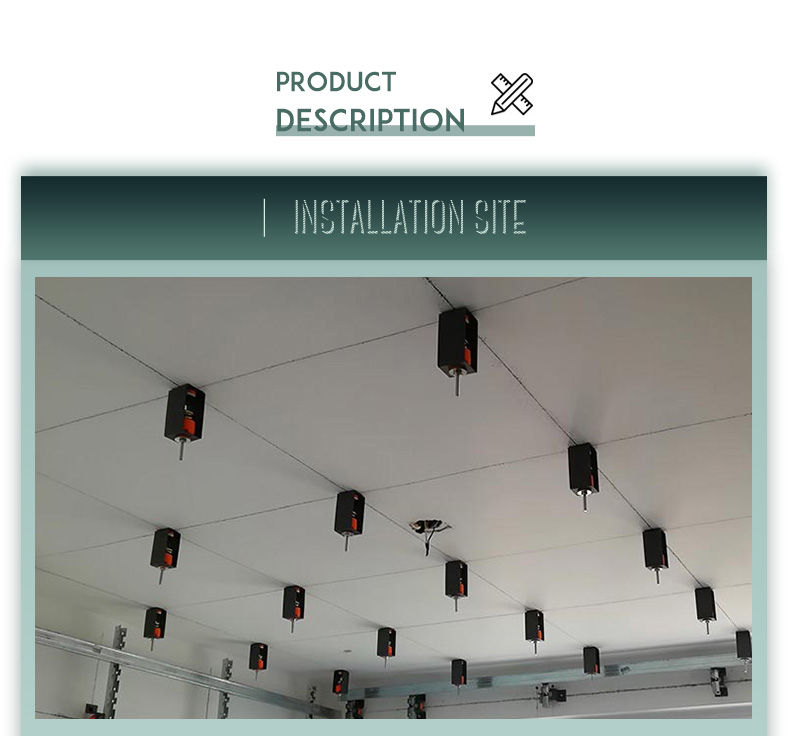

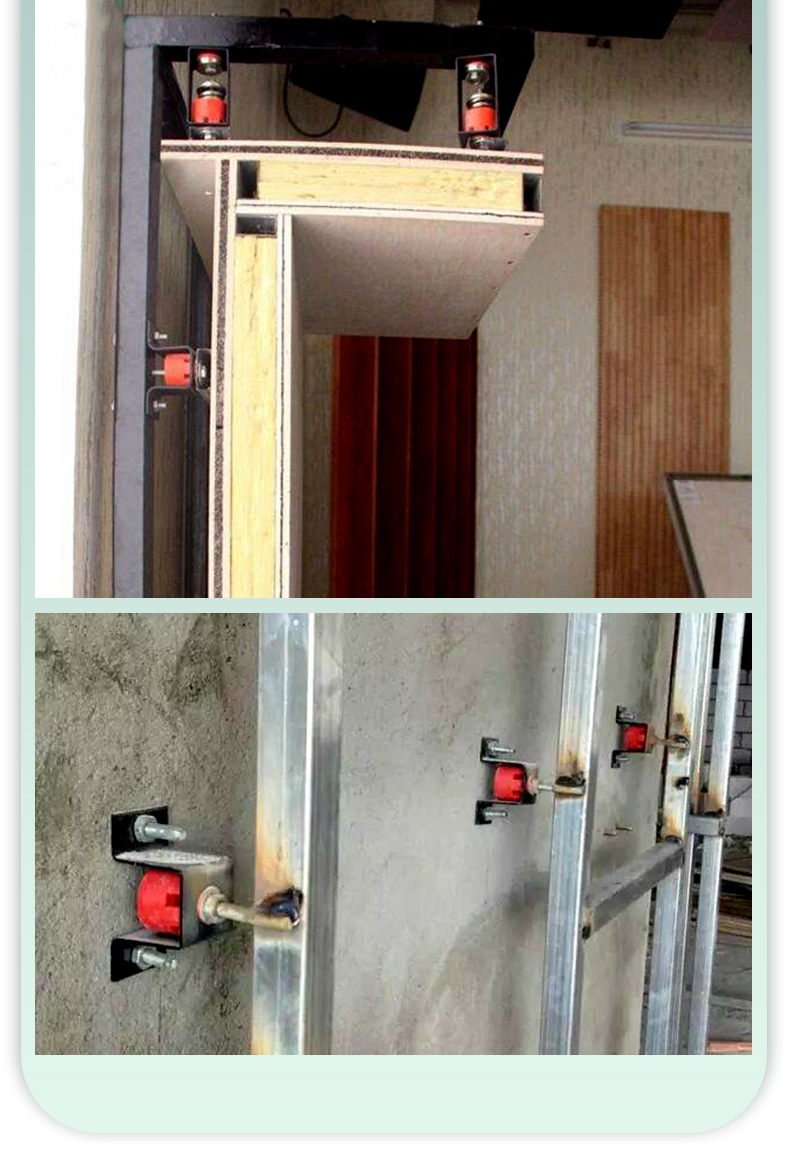

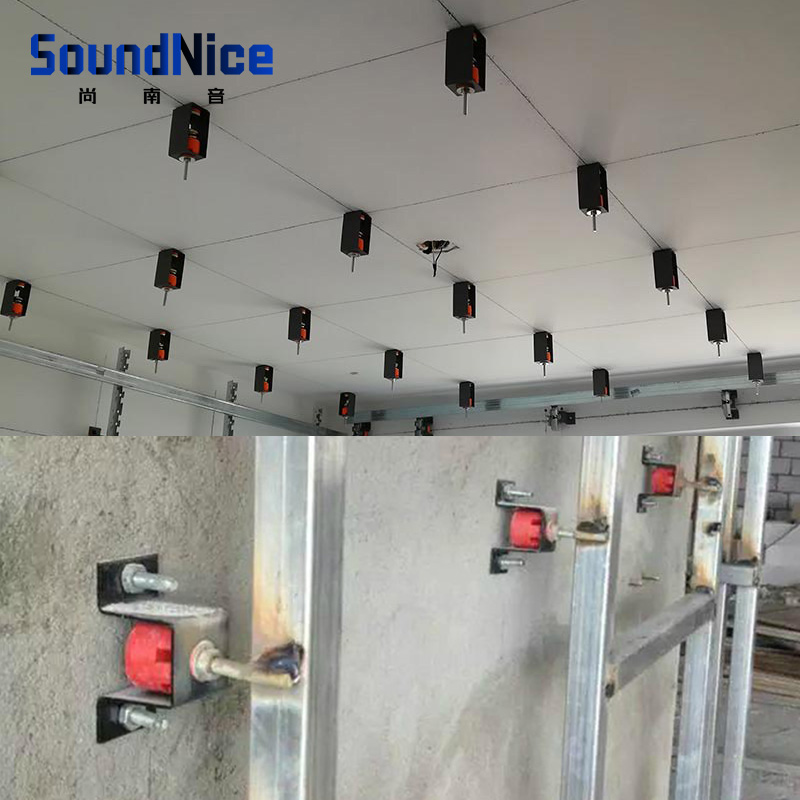

D.Installation method
