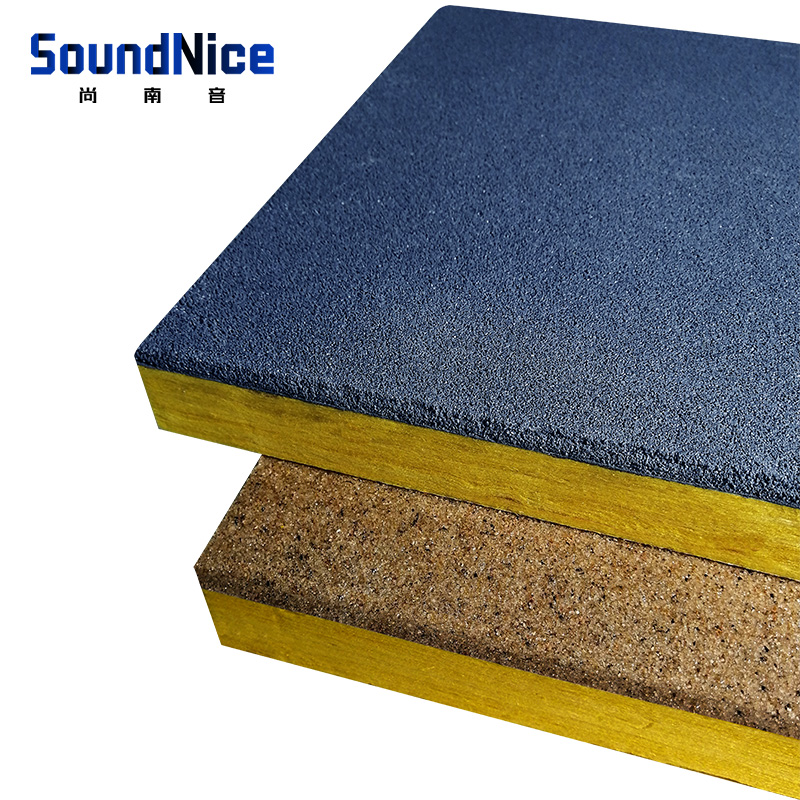

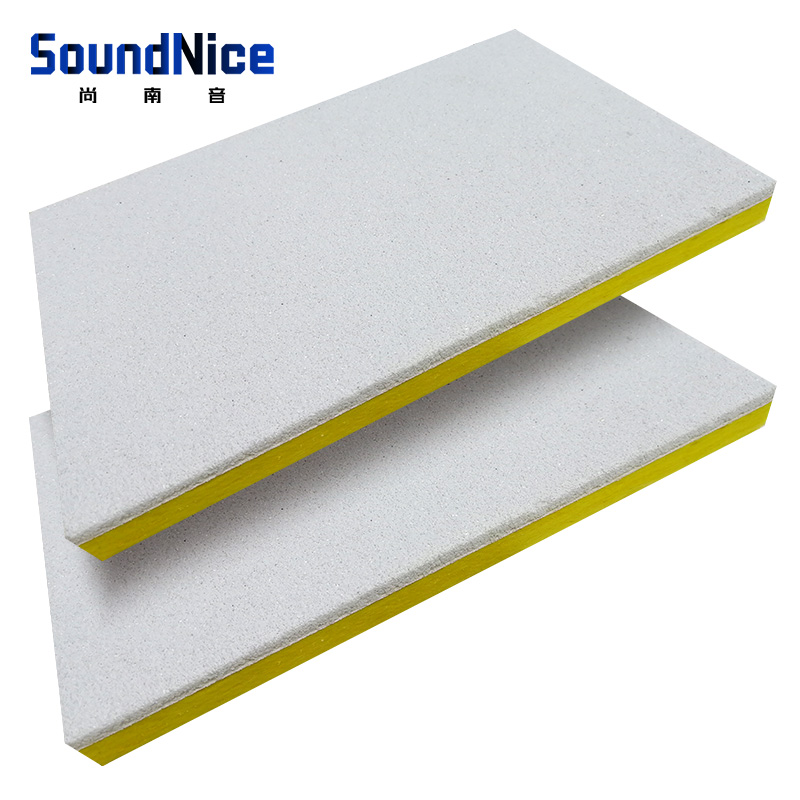

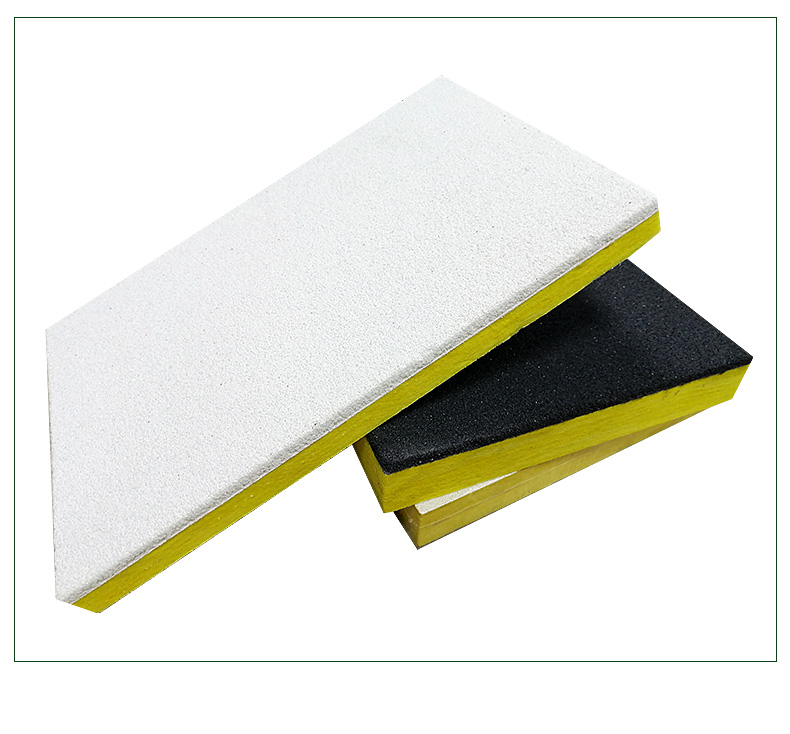

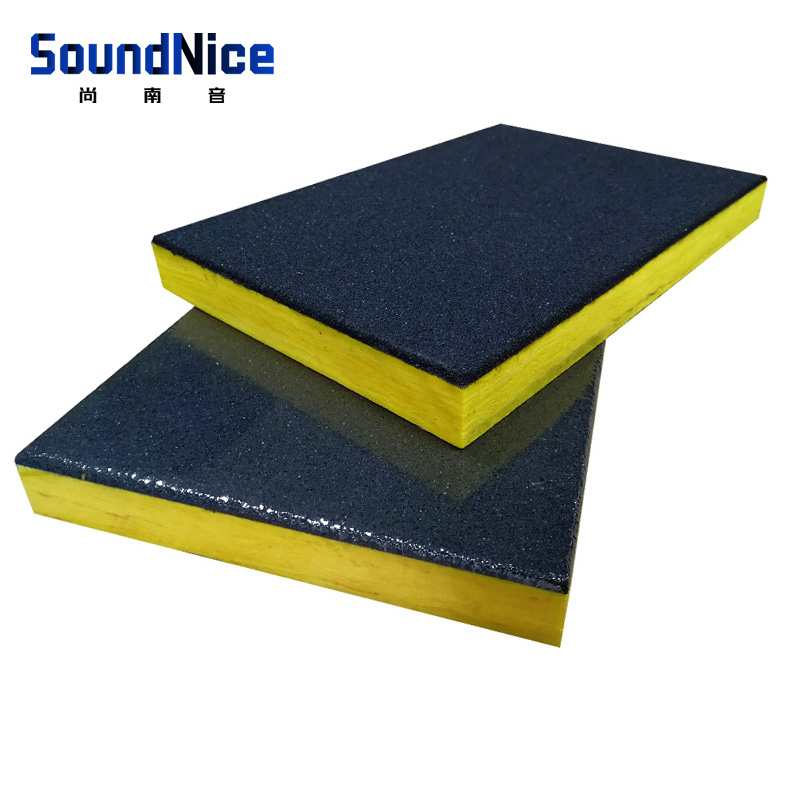

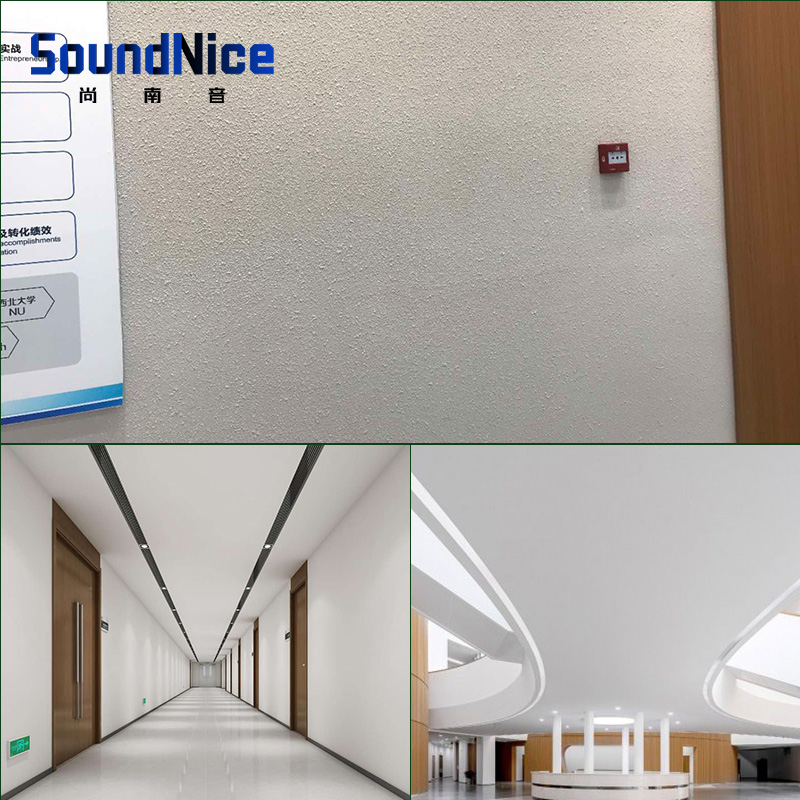

Sound absorbing plaster system

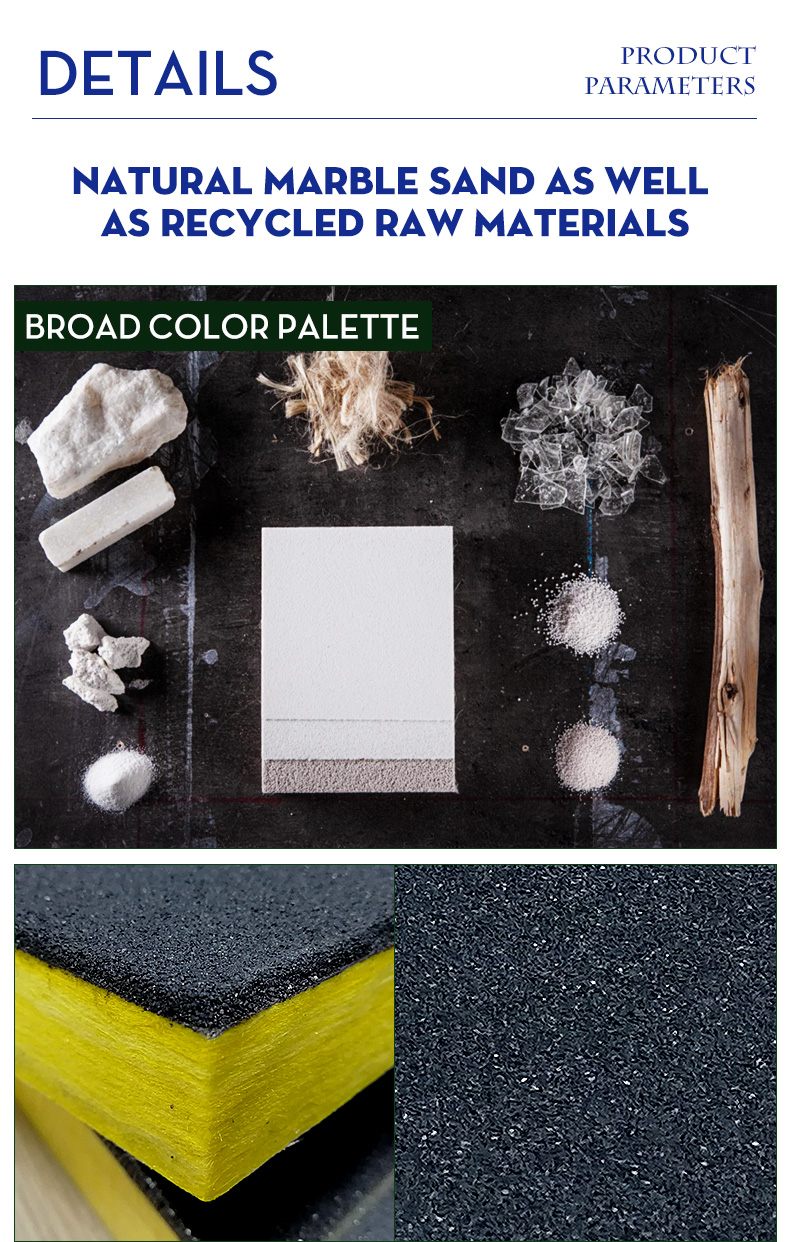

Sound absorbing plaster system is a new kind of seamless sound-absorbing material, which is basically a hard perforated board with a certain mesh number, and made of carefully-selected sands polymerized with the binding material.

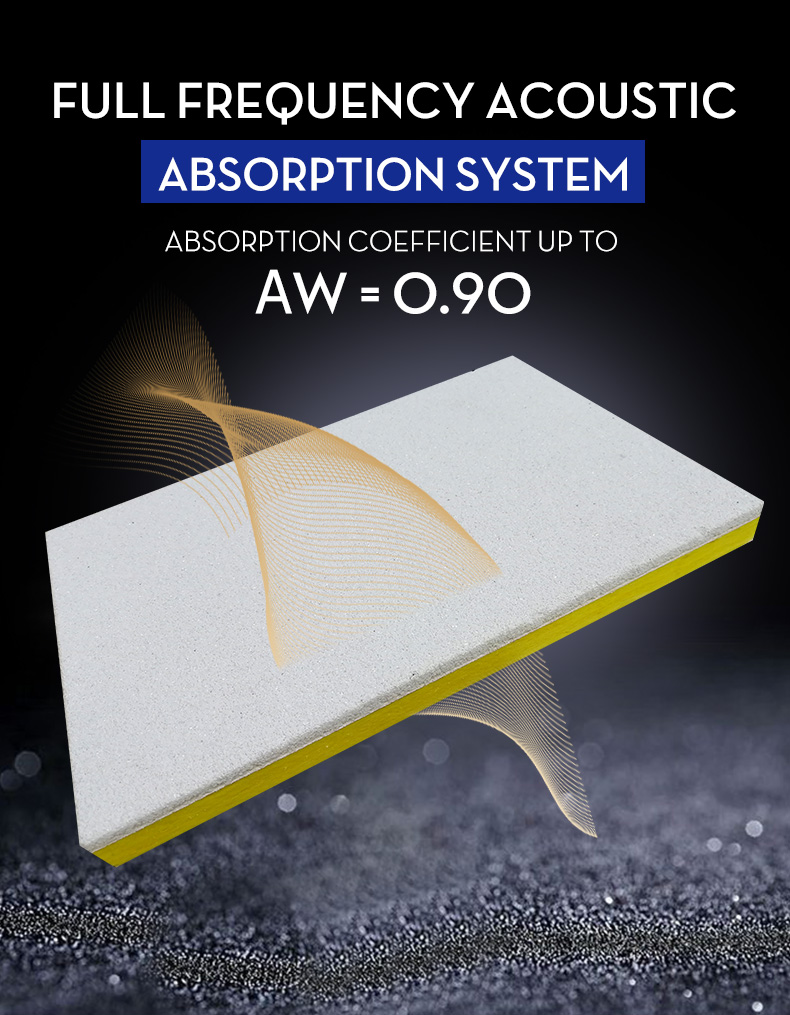

Sound proof plaster boards can be customized by adjusting the pore size, board thickness, and the size of the cavity of the rear of the board based on the sound-absorption mechanism of the porous and micro perforated panel to meet the sound-absorption requirements in all frequency bands.

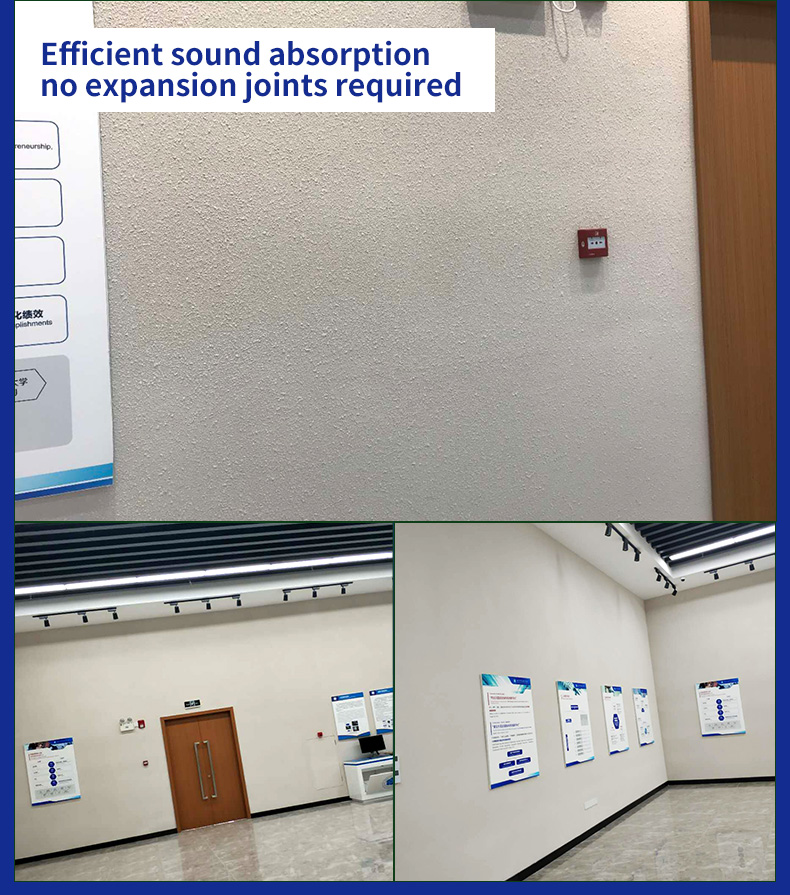

The sound absorbing plaster system is a great option for the soundproof plaster ceiling and soundproof plaster wall and is widely used in the interior space of such buildings as culture and education, medical treatment, office, business, exhibition, entertainment, sports, traffic, and so on.

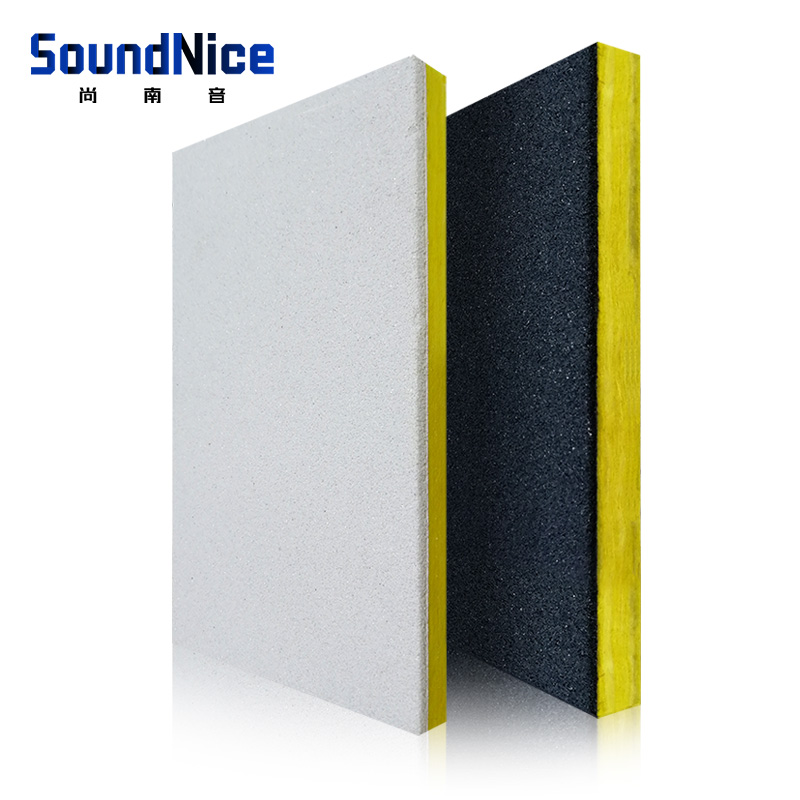

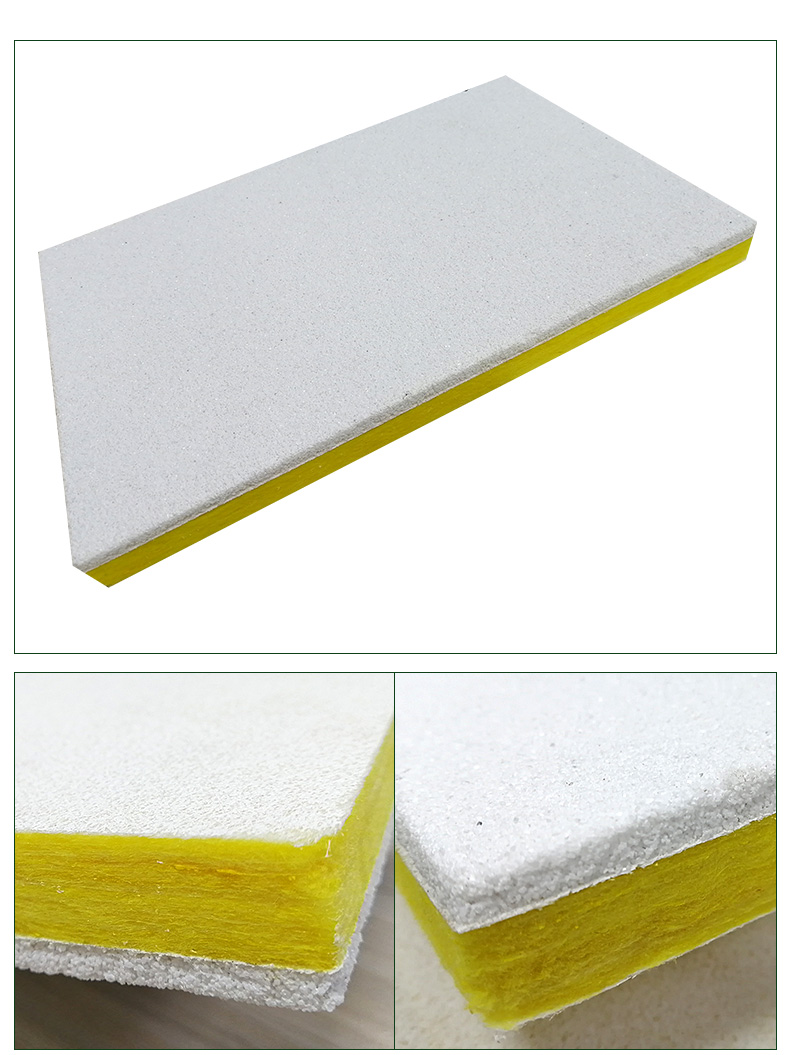

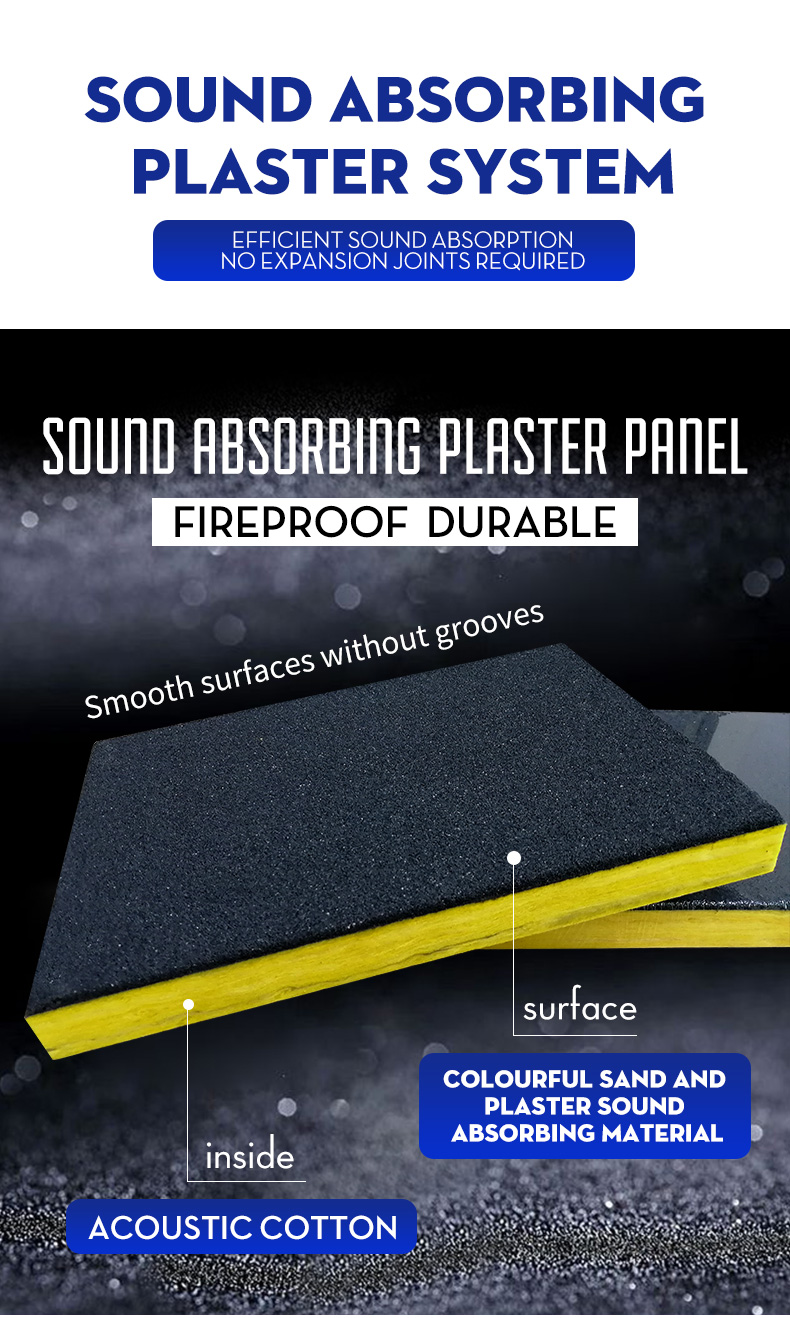

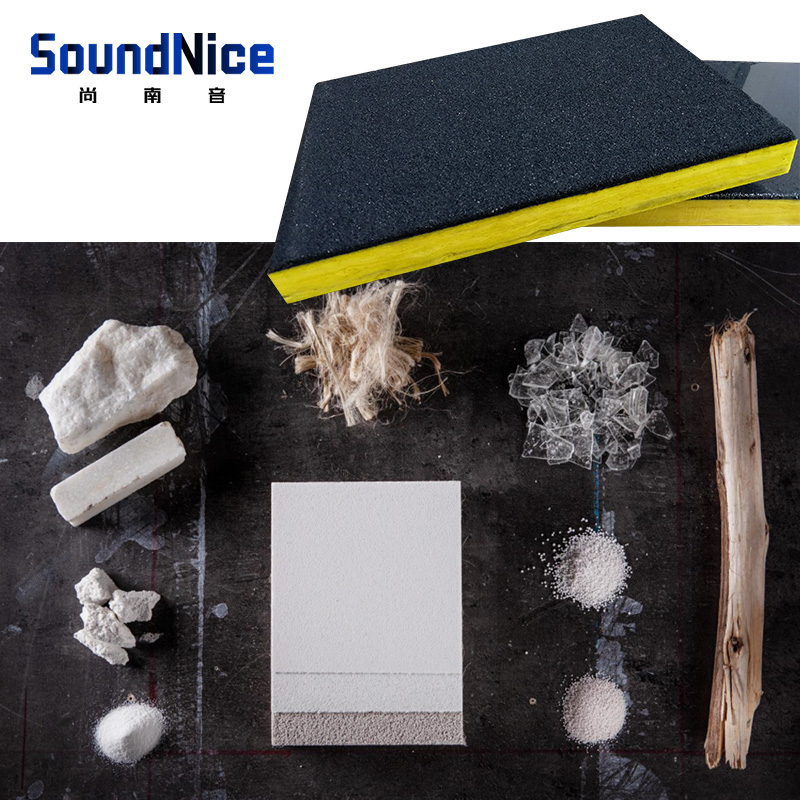

This sound absorbing plaster system is made by bonding crystal sand grains and glass fiber cotton, and both have the sound absorption and noise reduction functions of sandstone sound-absorbing panels and glass fiber cotton. Sound proof plaster boards can be directly attached to the installation mode without a hanging system and a back cavity and are suitable for direct installation on the surface of the wall and roof structure. The advantages are space-saving, convenience and quick construction.

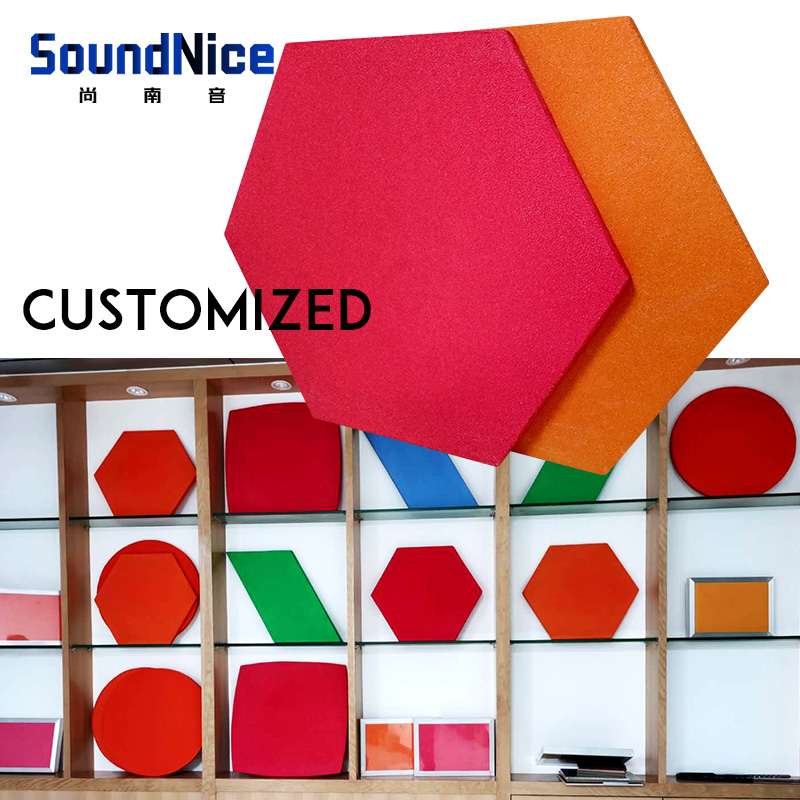

The size needs to be customized according to requirements, and please contact us for consultation
1. Detailed parameters
Main Material: Mineral fiber acoustic panel
Size: 600x600/1200, customized
Finish: Special painted laminated tissue
Design: White/black，spray paint or matte, customized
Fire rating: A class
NRC: 0.8-1.0
Thermal-resistant: ≥0.4(M3.K)/W
Humidity: Stable with RH up to 95% at 40 degree
Moisture rate: ≤1.0%
Safety: IRA≤1.0,IR≤1.3
Certificates: ISO9001-2008,SGS,CE
Standard density: 100kg/M3
2. Advantages of mineral fiberglass panel:
1) Reverberation room noise reduction index NRC up to 0.95 .
2) Fire detection by the authority Of the state level up A2 level (non-flammable) .
3) Indoor temperature of 40 CC, 90% relative humidity under dimensional stability in line with RH90 standards .
4) Fiberglass board / mineral fiber panel insulation with Iow thermal conductivity, thermal resistance 0.4 (m2) .
5) Fiberglass / mineral fiber panel antibacterial, anti-mildew, non-hazardous substances, the surface is not easy to attach dust will not provide breeding conditions for microorganisms, green asbestos-free, long-term durability after demolition waste base material recycling advantages; schools, hospitals, upscale Offices, theater houses, museums, recording studios.
3. Application space

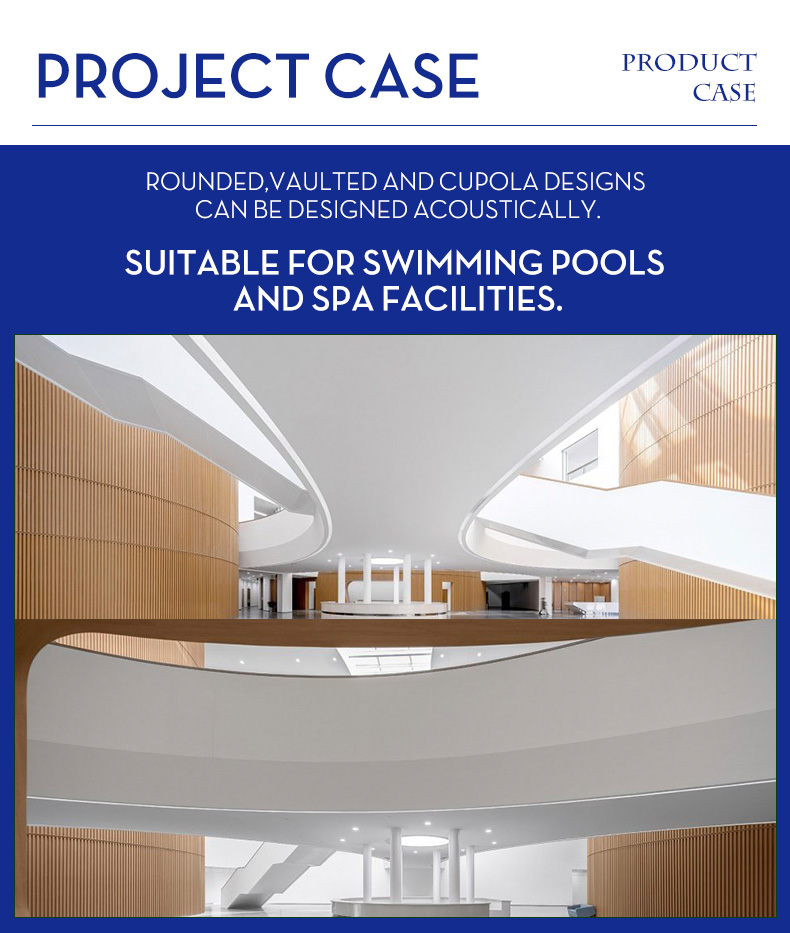

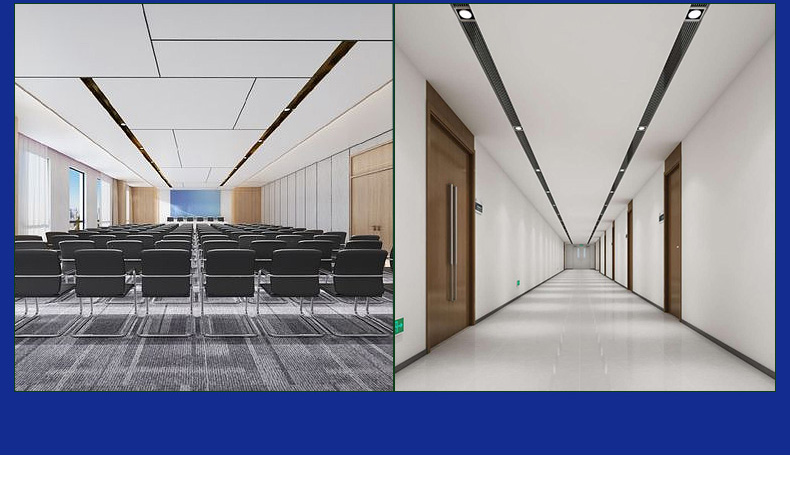

Applicable places: conference rooms, lecture halls, schools, exhibition halls, libraries, multifunctional halls, schools, hospitals, office buildings, galleries, auction halls, business offices, piano rooms, high-end offices, theaters, museums, recording studios.
4. Installation method
