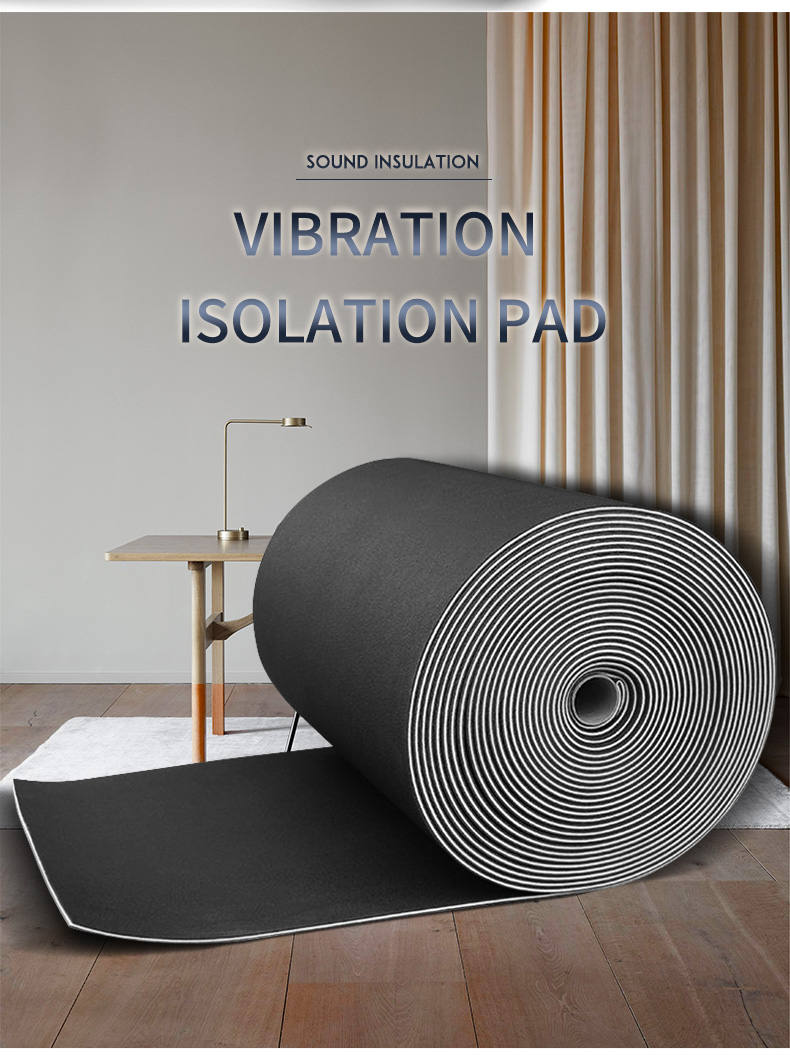

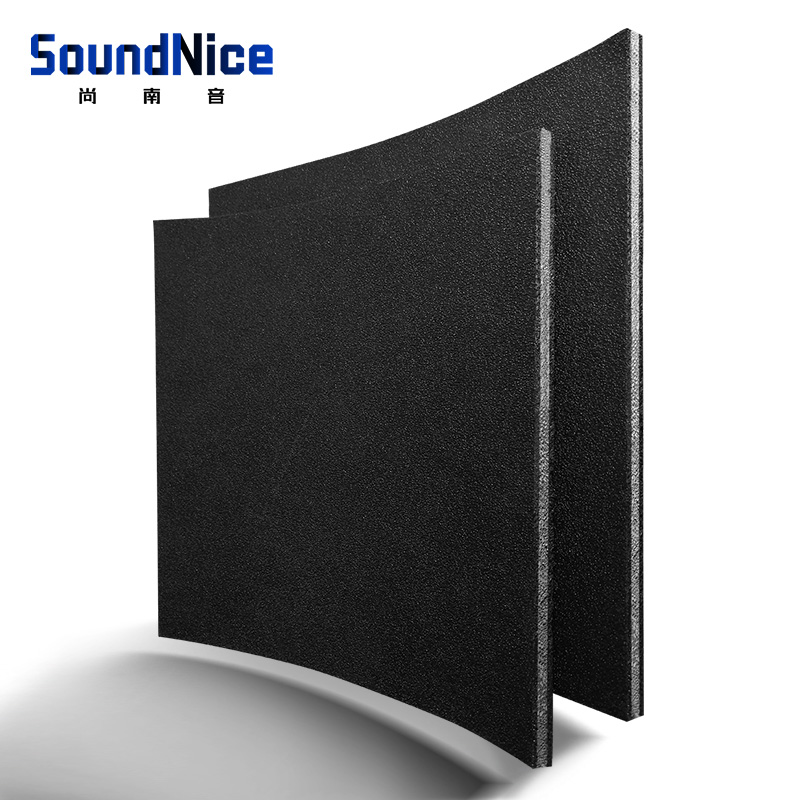

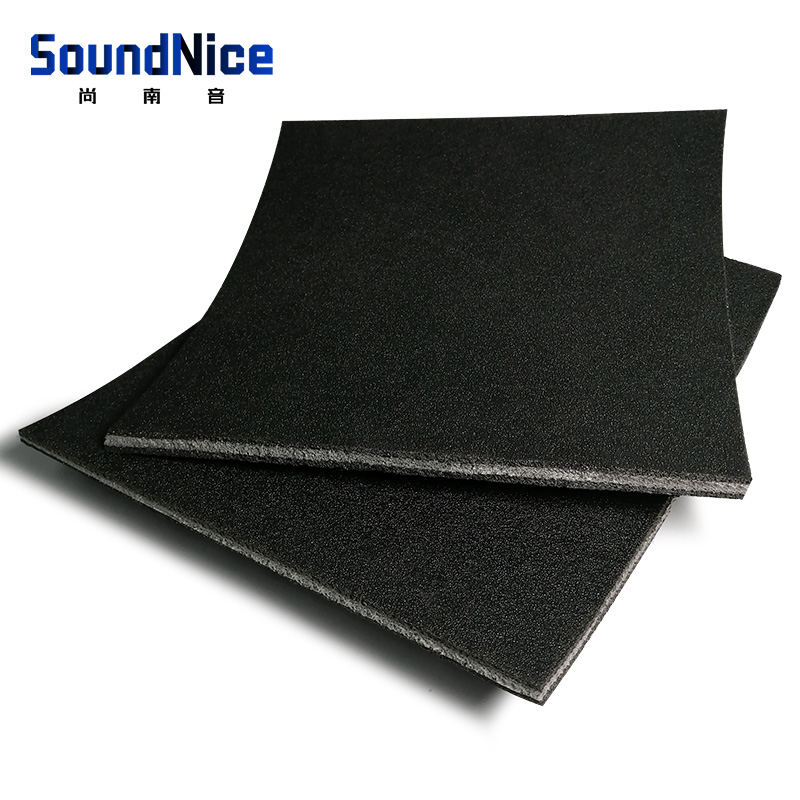

Vibration isolation pad

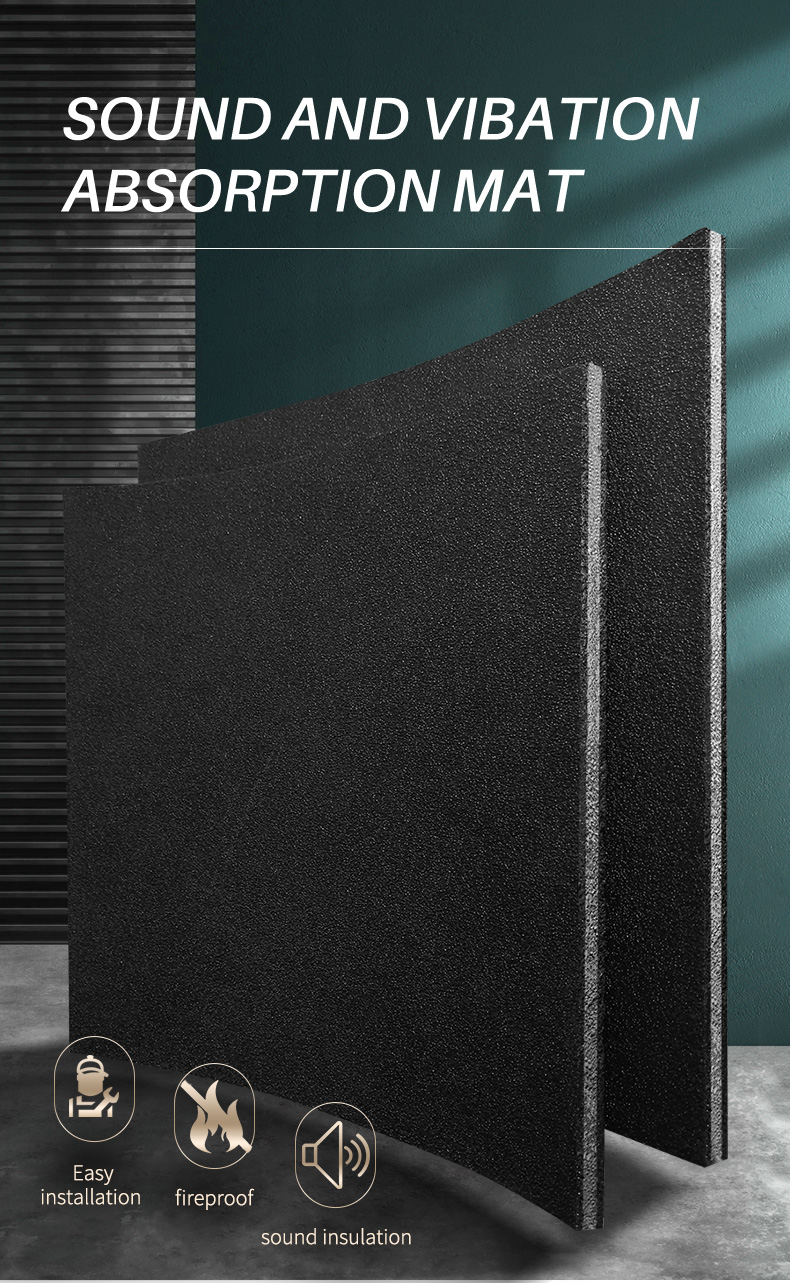

The raw material of the Vibration isolation pad is nano-foam, which is a kind of high-density foam. Its perforation rate and pore size are specially designed to achieve sound insulation, shock absorption, waterproof and moisture-proof effects. Green and environmentally friendly products with simple construction.

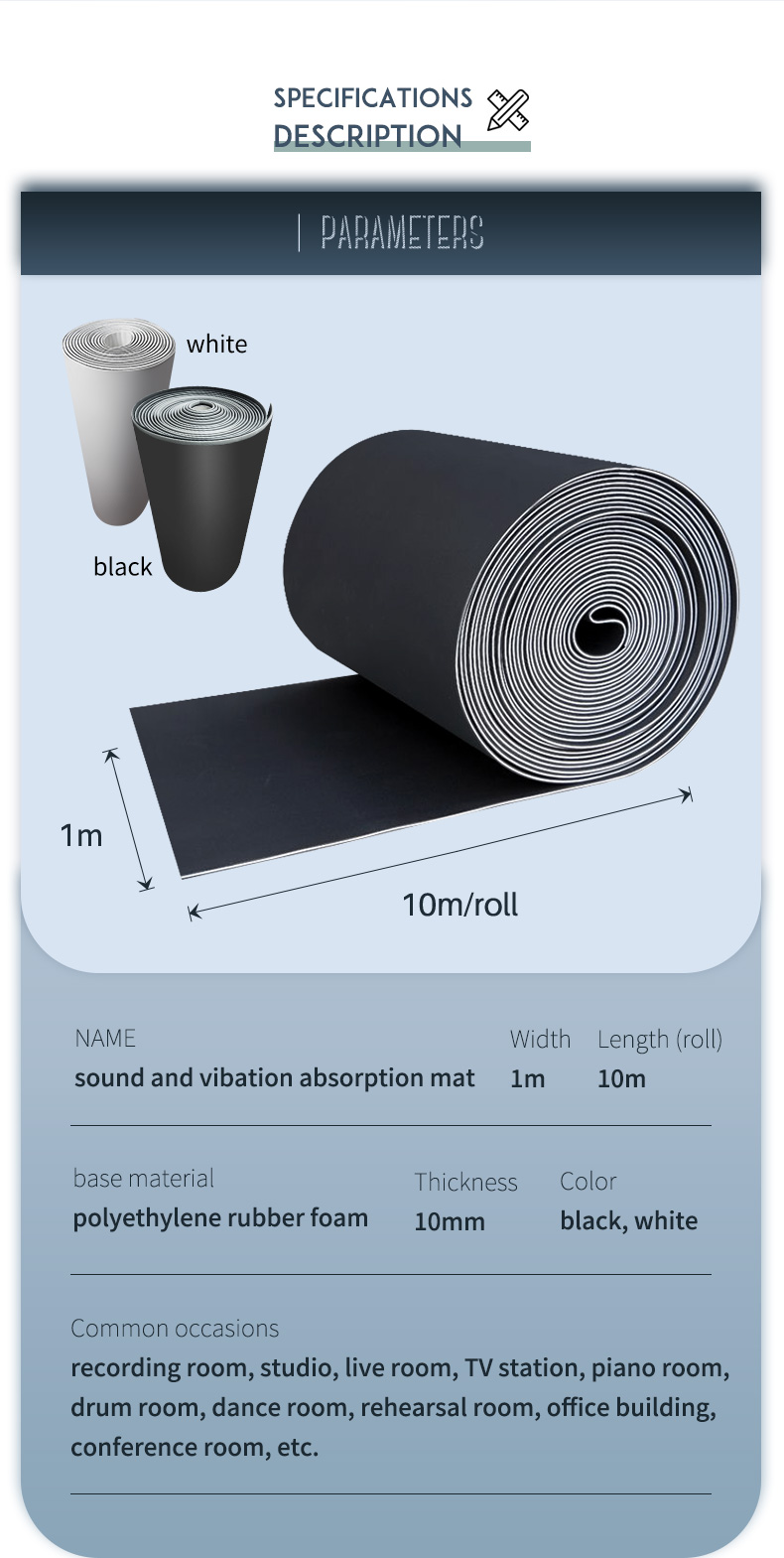

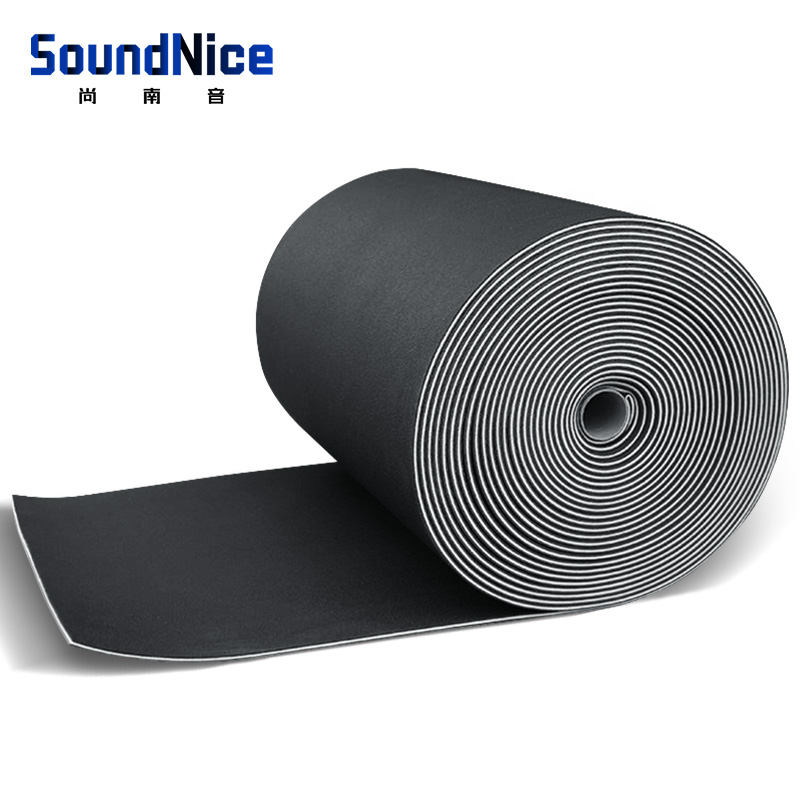

Name: Vibration isolation pad

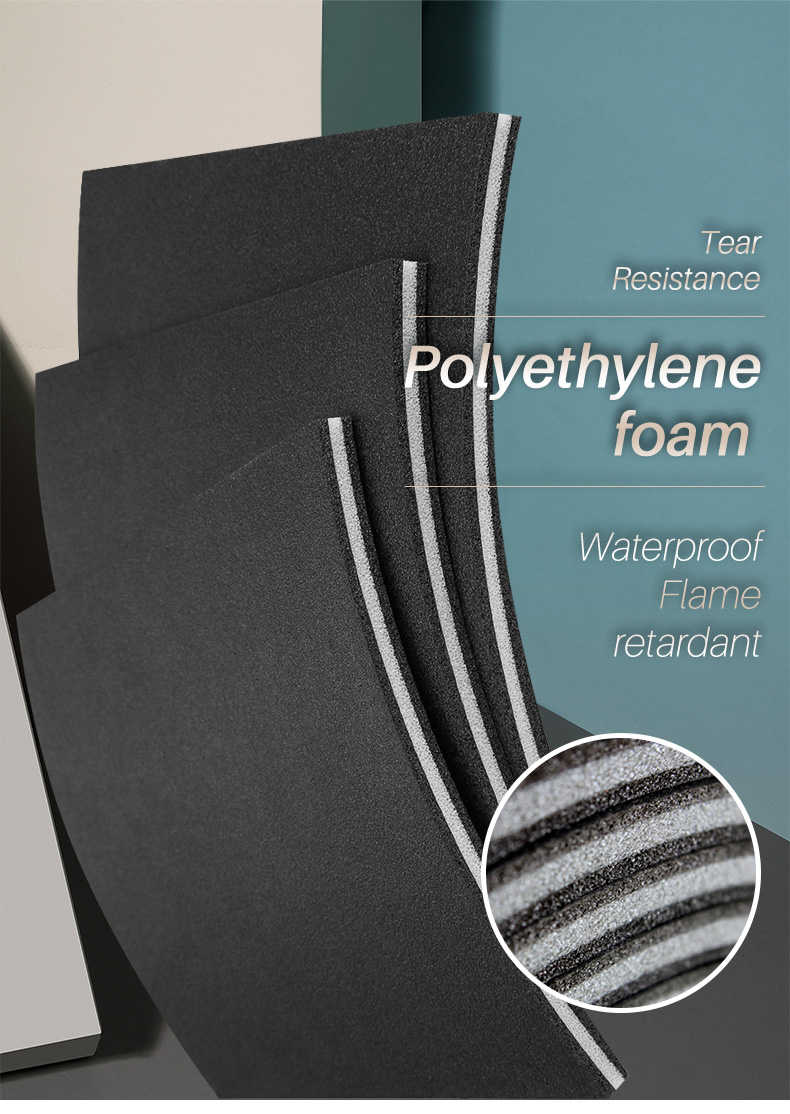

Base material: polyethylene rubber foam
Length (roll): 10 m
Width: 1 m
Thickness: 10 mm
Color: black, white

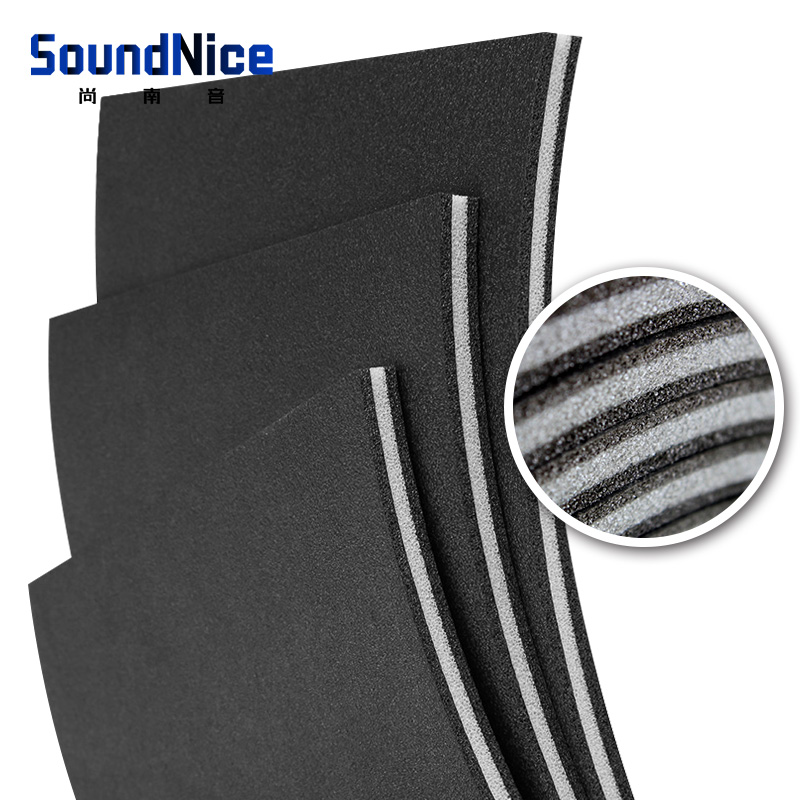

Three-layer composite (black + gray + black)
Details
A.Acoustic performance
The Vibration isolation pad has a particularly good sound blocking effect on the impact sound in the entire frequency range, and can effectively isolate the impact noise and airborne noise. This foam is a high-density foam. Its perforation rate and pore size are all specially designed to achieve sound insulation, shock absorption, water resistance, and mildew resistance. It is suitable for various humid environments.
The Vibration isolation pad makes the entire floor form a floating structure through the elasticity of the nano-foam, which cuts off the sound transmission effect of the solid. It also improves the anastomotic effect of the upper ground and enhances the acoustic impedance. Through the tiny holes of the nano-foam, the acoustic energy in the sensitive frequency band of the human ear can generate cavity resonance, weaken the energy of the sound, and achieve the purpose of isolating the impact sound.
B. .Features of Vibration isolation pad：
1. No ozone-depleting substances
2. Does not contain lead powder and questionable oil
3. Easy to cut, glue, sew, nail or mechanically compound
4. Burning safety, self-extinguishing after removing the flame, no dripping
5. Strong flexibility and tear resistance
C.application space

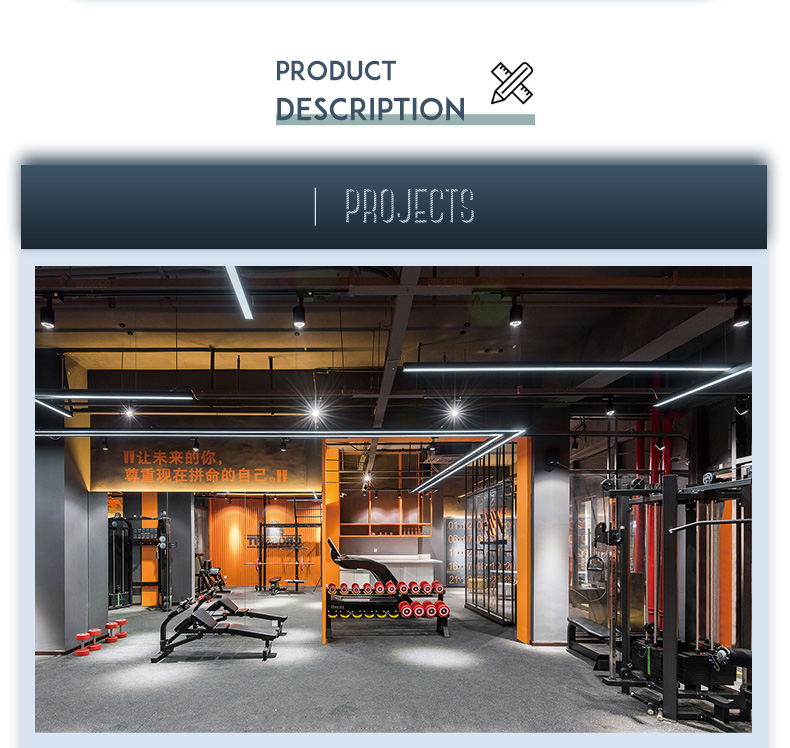

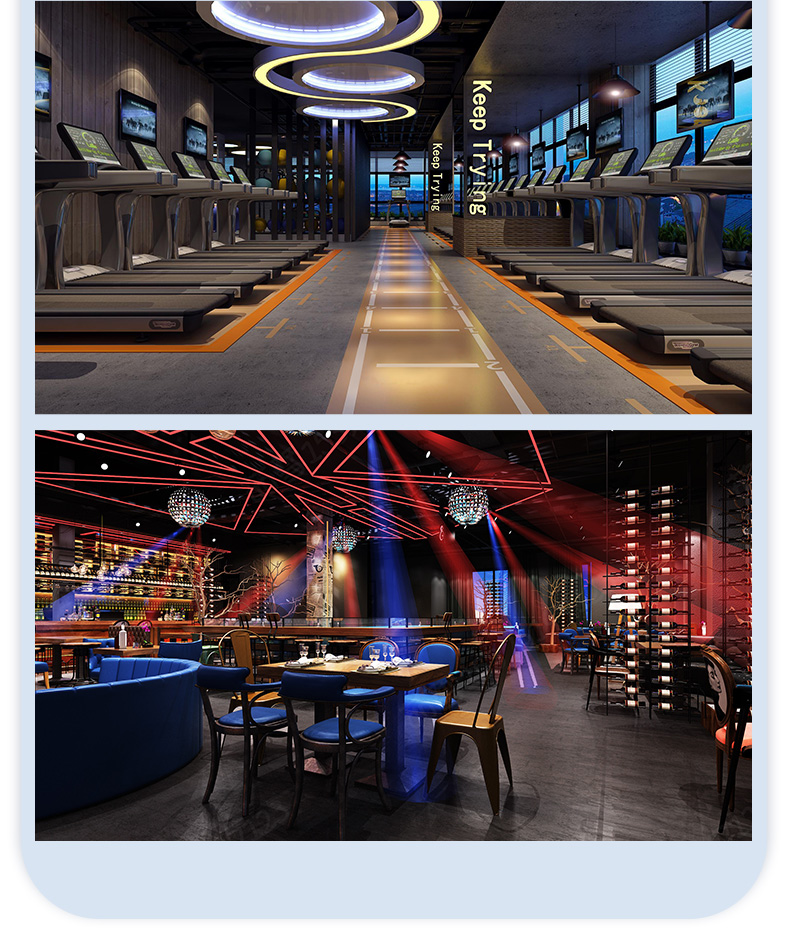

Mainly used in bars, gyms, residences, hotels, hotels, schools, business buildings, KTVs, nightclubs, dance halls and other entertainment venues and other places where sound insulation and vibration reduction are required. It has good damping and vibration reduction effects and is a cost-effective High auxiliary floor material.

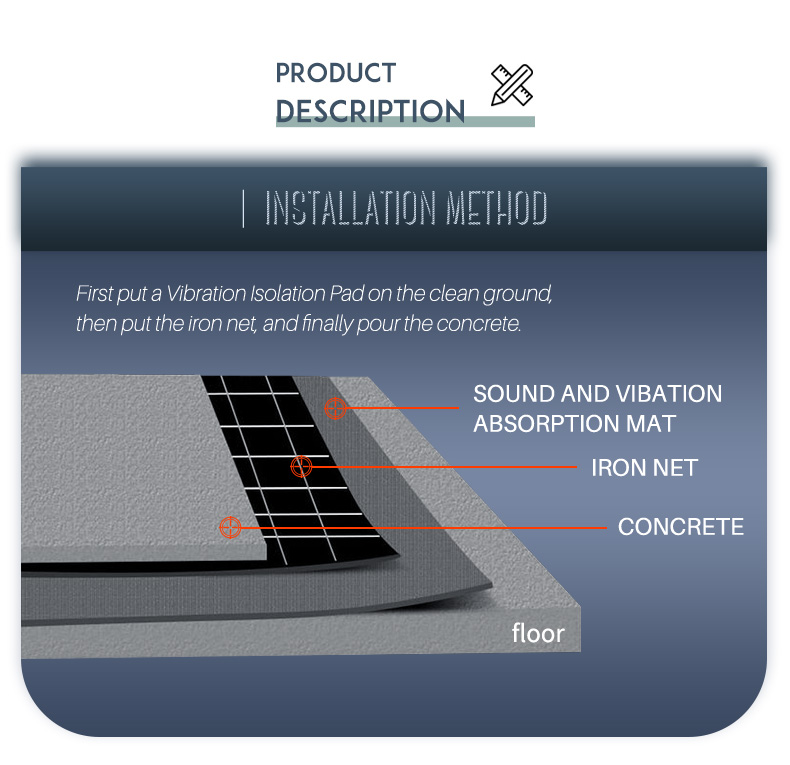

D.installation method
1. Level and clean the ground, and cut the product to the required size before installation.
2. Lay the Vibration isolation pad on the floor, and seal the joint with all-purpose glue at the splicing place, and then stick a layer of sealing tape to cover the joint to prevent sound from being transmitted through the solid ground.
3. Avoid air bubbles between the product and the ground during the construction process.
4. After laying the product, immediately spread cement and tiles.
